Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Balance
- Model Number: ZLP500
- Material: Steel, Aluminum Alloy
- Color: Red, Yellow, Blue, etc
- Surface treatment: Powder coating, Hot galvanization
- Length: 2m, 2.5m, 3m, 5m, 6m, 7.5m, etc
- Lifing Mechanism: Gear
- Lift Drive/Actuation: Electric Motor
- Power: 1.5kw, 1.8kw, 2kw
- Rated Loading Capacity: 150kg, 250kg, 500kg, 630kg, 800kg, 1000kg
- Max. Lifting Height: 200m
- Voltage: Work Adjustable Rope Suspended Platform accept different voltage
Specifications

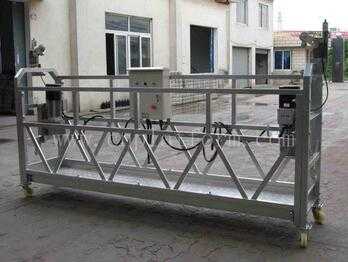

ZLP Height Work Adjustable Rope Suspended Platform
1.Durable
2.Trouble-free operate
3.CE/ ISO
4.Reliable in safety
ZLP Height Work Adjustable Rope Suspended Platform
Breif introduction
1) Basic standard platform is 6 meters long (made of three 2 -meter platforms), 0.69m width, front-height 108 cm, back-height 118 cm.
2) 4*100(meter) wire ropes of which two are safe rope, another two are working rope.
3) Rated Loaded: 300Kg-800Kg
4) 100meters Cable and Electric-cabinet Motor: make according to your demand.
We have many types platform length: 1 meter, 1. 5 meter, 2 meters and 3 meters, also can combine according to your requirement.
A whole Suspended Cradle System includes cage, hoist, safety-lock, electric control box, wire rope, suspension mechanism, counterweights and connectors etc.
Parts contains:
1. Suspended Cage: Steel or Aluminum Alloy (plastic coating or hot galvanization)
2. Suspension Mechanism: Steel (plastic coating or hot galvanization)
3. Electric hoists: LTD5, LTD6.3 or LTD8
4. Safety Lock: LSB30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm or 8.6mm
7. Power cable: 1.5mm²,2.5 mm², 4 mm² or 6 mm²
8. Counterweights: Cement or Cast Iron
9. Spare parts
Parameters of ZLP Height Work Adjustable Rope Suspended Platform:
|
Model
|
ZLP250
|
ZLP500
|
ZLP630
|
ZLP800A
|
ZLP800S
|
|
Material
|
Steel or Aluminum Alloy
|
|
Rated Capacity(kg)
|
250
|
500
|
630
|
800
|
800
|
|
Lifting Speed (m/min)
|
9-11
|
9-11
|
9-11
|
8-10
|
8-10
|
|
Motor Power (kw)
|
LTD5
|
LTD5
|
LTD6.3
|
LTD8
|
LTD8
|
|
Platform Length (m)
|
2.5
|
5
|
6
|
7.5
|
7.5
|
|
Counterweights (kg)
|
625
|
750
|
900
|
1000
|
1000
|
|
Diameter of Wire rope (mm)
|
8.3
|
8.3
|
8.3
|
8.6
|
8.6
|
|
Standard lifting height (m)
|
100
|
100
|
100
|
100
|
100
|
Wuxi Balance Machinery Equipment Co., Ltd, affiliated to Great Technology Group, established in 2004, is manufacturer and merchants with Lifting Platform which load man and goods. Our Group own two departments, one is Car components department, another is Suspended platform department. We are directly subordinate to latter, mainly export Suspended Platform and Aerial Work Platform and its components.
Our Suspended platform department boasts large-scale advanced sets of production equipments and testing instruments, like 10T smelting furnaces, 280T~2500T full automatic die casting robot system from Japan, more than 50 imported erect CNC procession centers, three-coordinates measuring machine (CMM) from Taiwan, optical spectrum analyzers and other whole set precision measuring equipments. We adhering to its enterprise spirit of "Every life is precious!". After continually research and specialists guide, we inosculate Core part LTD series hoists with car engine components technology. Our core components quality at the level of highest precision, lowest error rate, are reviewed favorably by domestic and abroad clients.
"Balance brand" Suspended Platform is our sole brand to enter into international market, it signify equilibrium and stable. Suspended Platform and Aerial Work Platform replace traditional scaffold for the purpose of construction, cleaning, maintenance of outer wall of high rise building with various application. With characteristics of simple operation, good stability, large capacity and difficult rust, our platform can lower operator's construction risk, reduce work intensity and enhance work efficiency. It's the best safe mate for sky operation.
Since establishment and expansion abroad market, Balance products have sold in over 30 countries and regions like Middle East, India, Europe, North America, Latin America, Brazil, Russia, ASEAN, etc. We gain a very high support and trust by clients with its excellent quality and sincere service by entire staff unremitting efforts and experiences from tough competition.
"Service as basis, Surviving on quality, developing with technology" is business principle of the Balance. We will march fearlessly onward, break through the field of low-to-high work platform, pioneer and invent continuously, and provide more all-around and better products and service by our sincerity and endeavor.
