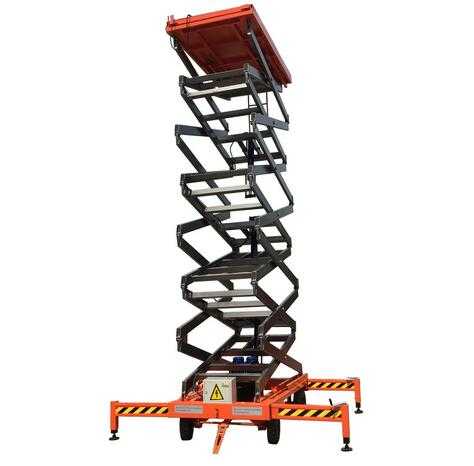

SJY0.3-3 4 Wheels Mobile Hydraulic Scissor Lift Platform for sale

• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Balance
• Model Number: SJY0.3-3
• Lift Mechanism: Scissor Lift
• Lift Drive / Actuation: Hydraulic
• Power: 1.1KW
• Rated Loading Capacity: 300KG, 200kg, 300kg, 500kg, 1000kg, etc
• Min. Lifting Height: 960mm
• Max. Lifting Height: 3000mm
• Table Size: 1000mm*800mm
• Overall Dimensions: 1000mm*900mm*960mm
• Weight: 700KG
• Certification: CE
• Warranty: 1year
• After-sales Service Provided: Engineers available to service machinery overseas
• Drive Mode: 4 Wheels Mobile Scissor Lift Platform accept different drive: AC, DC
• Working Height: 4m, 6m, 9m, 11m, 14m, 16m
• Movable Tire: 4 pcs 400-8 air-filled tyre
• Walk Way: Manual or Automatic
• Material: High strength steel
• Platform Panel: 3mm thickness antiskid checkered plate
• Scissor Material: Q345B High-strength manganese steel
• Color: Red, Yellow, Blue, etc
• Surface treatment: Powder coating, Hot galvanization

General description and advantages:
This 4 Wheels Mobile Scissor Lift Platform is made of high-duty rolled steel. It can be moved conveniently, and has bigger platform, bigger lifting capacity to take several people to work on it together.
Details: This kind lift platform has several models on different standards.

1.Lifting height: 4m, 6m, 8m, 10m and 18m etc.

2. Loading capacity: 100kg, 200kg, 300kg and 2000kg et.

Supplying capacity:
We have regular model of lift kept in our warehouse, they can be delivered as soon as the order comes. Or we manufacture the machine according to the order that the customer gives, with special design.

Power driven:
The usual power supply is external connection electricity variety of 220v, 240v, 380v, 400v. and they also can be equipped with handle control, in case the power is not available that the lift can work.

Changeable items:

1.The control button is all put on the ground panel, but they can be changed onto the platform or controlled by a remote controller.

2.The tire of the lift can be chosen from MGW tire or solid tire or other kinds.

3.The power supply can be changed to diesel driven power to meet the need where the electricity is not available. Or the machine is implanted with anti-explosive for the environment

This tire lift is suit for street lamp repairing, aerial work, aerial work, suspension equipments in the workshop, square, gas station, electricity equipment maintaining, and steel structure building.

Parts contains:

1. Platform Cage

2. Main beam of Scissor

3. Cylinder

4. high-pressure oil tube

5. sealing element

6. Motor

7. Handle drive, Speed control board

8. Battery

9. Battery charger

10. Movable tire

11. Balancing leg

12. Others

Parameters of  4 Wheels Mobile Scissor Lift Platform:
