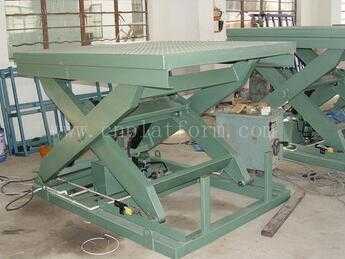

SJG10-1.2 High strength steel Stationary Hydraulic Scissor Lift

• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: Balance
• Model Number: SJG10-1.2
• Lift Mechanism: Scissor Lift
• Lift Drive / Actuation: Hydraulic
• Power: 7.5kw
• Rated Loading Capacity: 10000kg, 500kg, 1000kg, 1500kg, 5000kg, etc
• Min. Lifting Height: 680mm
• Max. Lifting Height: 1880mm
• Table Size: 2300*2000 mm
• Overall Dimensions: 2330*2030*730mm
• Weight: 2600kg
• Certification: CE, ISO9001:2008
• Material: High strength steel
• Platform Panel: 3mm thickness antiskid checkered plate
• Scissor Material: Q345B High-strength manganese steel
• Color: Red, Yellow, Blue, etc
• Surface treatment: Powder coating, Hot galvanization
• Working Height: 1m, 1.5m, 2m, 3m, etc
• Control Mode: Manual, Electrical
• Drive Mode: Stationary Scissor Lift accept different drive: AC, DC
• Connecting material: Gas shielded arc welding

Specifications

Stationary Scissor Lift
1.High-duty steel, spacious work platform
2.Easy operation
3.Safe and reliable
4.Emergency buttons

Application

1. This series of Stationary Scissor Lift are mainly used in the production line in industrial and mining enterprise industry. They can also be used as lifts to convey goods in other industries. The products can be made according to the parameters by customers.

2. The platform equipped with antiskid platform to prevent slipping, it is enough safe when people works on the platform.

3. The control box only have three buttons, easily operate.

4. It is sited in a lift pit and accessorial tracks. The table of lift is in the same level with the ground.

5. Smooth working condition, high load capacity, safe and reliable.

6. Types of control mode: manual, electrical, we can also install the remote control device according to your requirement.

7.The work table would equip the guardrail to guarantee the safety.

Details:

1.The stationary hydraulic lift has two mainly types according to different situations. One is to be sited on a special place to loading cargos and then lifting to a certain height to handle and move the cargo. The other is sited in a lift pit and accessorial tracks.

2. The table is in the same level with the ground which is convenient to move the cargos into it. In this way it also can be called freight elevator.

3. The remote control and multi-control points at the different floors couble be realized at each control point. The lift platform could stop at the accurate location point.

Services:

We supply spare parts free for one year, and supply the technical supporting all the time(spare parts: Emergency buttons, control button, travel switch, oil cylinder seals, etc)

Parameters of Stationary Scissor Lift:
