Quick Details
Description
Place of Origin: Jiangsu, China (Mainland)
Brand Name: Balance
Model Number: JCPT6HD
Lift Mechanism: Scissor Lift
Lift Drive / Actuation: Hydraulic
Power: 3kw
Rated Loading Capacity: 380kg
Min. Lifting Height: 1660mm
Max. Lifting Height: 6m
Table Size: 2270*810 mm
Overall Dimensions: 2390*810*1660mm
Weight: 2010kg
Certification: CE, ISO
Warranty: 1 Year
After-sales Service Provided: Engineers available to service machinery overseas

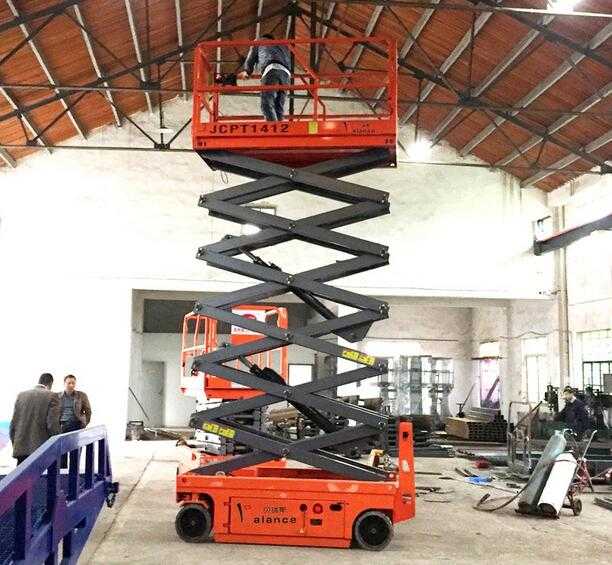

Drive Mode: Self-propelled Aerial Work Platform for sale
Max Working Height: 8m
Drive speed (stowed): 3.5km/h
Drive speed (raised): 0.8km/h
Color: Red, Yellow, Blue, etc
Grade ability: 25%
Walk Way: Battery Traveling
Lift Way: Battery Lifting
Material: High strength steel
Maintenance-free Battery (v/Ah): 4*6V/225An
Self-propelled Aerial Work Platform for salelf Hydraulic Scissor lift Standard ment:
1. Automatic pit protection system.
2. Mobile control box, Proportional control, Slide the battery tray.
3. The sliding out type extension platform.
4. Forklift slots, can lift from behind and both sides.
5. Four pieces 6v, 225An/H deep cycle electromagnetic battery.
6. The Angle of safety protection system.
7. Foldable door, Self lock during operation.
8. The LED battery indicator.
9. Warranty time: 1 year, apart from man-made fault.
10. Lift speed: 60s
Safety Device:
1. Reliability and High efficiency
2. Compact frame, easily pass through narrow doorways, with solid non-trace tire.
3. Low noise, convenient operation.
4. Top-down control, easily operation.
|
Data/Model
|
JCPT-6HD
|
JCPT-8HD
|
JCPT-10HD
|
JCPT-12HD
|
|
Lifting height(mm)
|
6000
|
8000
|
10000
|
11800
|
|
Max. working height(mm)
|
8000
|
10000
|
12000
|
13800
|
|
Load capacity(kg)
|
380
|
320
|
300
|
300
|
|
Guardrail height(mm)
|
1100
|
1100
|
1100
|
1100
|
|
Extend platform capacity(kg)
|
100
|
100
|
100
|
100
|
|
Platform size(mm)
|
2700*810
|
2270*1120
|
2270*1120
|
2270*1120
|
|
Extend platform length(mm)
|
870
|
900
|
900
|
870
|
|
Overall size(mm)
|
2270*810*1850
|
2480*1160*2320
|
2480*1150*1920
|
2480*1160*2610
|
|
Grade ability
|
25%
|
25%
|
25%
|
25%
|
|
Lift motor
|
24V/3KW
|
24V/3KW
|
24V/3KW
|
24V/4.5KW
|
|
Drive speed(stowed)
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
3.5km/h
|
|
Drive speed(raised)
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
0.8km/h
|
|
Maintenance-free Battery V/Ah
|
4*6/450
|
4*6/450
|
4*6/450
|
4*6/450
|
|
Self Weight(kg)
|
2000
|
2100
|
2500
|
3000
|
