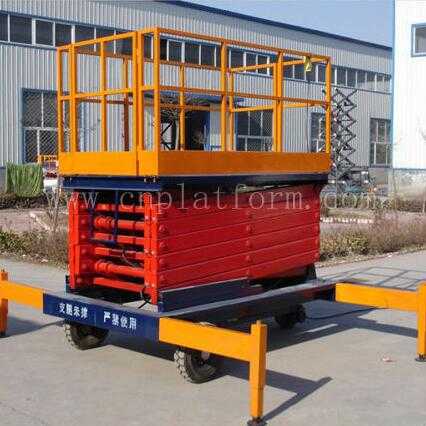

SJY0.5-11 High-strength manganese steel Hydraulic Mobile Elevator
SJY Series Mobile Elevtor Made of excellent hydraulic manganese steel, the lift platform is featured by novel design, stable lift, simple operation and easy maintenance, applicable to upper air inspection, maintenance, decoration, cleaning and storage in warehouses, airports, bus/train stations, factories, exhibition halls, hotels, hospitals, shopping malls and gyms.
Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Balance
- Model Number: SJY0.5-11
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 2.2kw
- Rated Loading Capacity: 500kg, 200kg, 300kg, 500kg, 1000kg, etc
- Min. Lifting Height: 1.6m
- Max. Lifting Height: 11m
- Table Size: 2200*1150 mm
- Overall Dimensions: 2230*1180*1650mm
- Weight: 1420kg
- Certification: CE, ISO9001:2008
- Material: High strength steel
- Platform Panel: 3mm thickness antiskid checkered plate
- Scissor Material: Q345B High-strength manganese steel
- Color: Red, Yellow, Blue, etc
- Surface treatment: Powder coating, Hot galvanization
- Working Height: 4m, 6m, 9m, 11m, 14m, 16m
- Walk Way: Manual or Automatic
- Drive Mode: Mobile Elevator accept different drive: AC, DC
- Supporting Leg: 4 pcs
Specifications
Mobile Elevator
1. Smoothly lift up and drop down
2. Easily operated
3. Few faults
4. High efficiency, high quality
Breif introduction
SJY Series Mobile Elevtor Made of excellent hydraulic manganese steel, the lift platform is featured by novel design, stable lift, simple operation and easy maintenance, applicable to upper air inspection, maintenance, decoration, cleaning and storage in warehouses, airports, bus/train stations, factories, exhibition halls, hotels, hospitals, shopping malls and gyms.
We have several power configuration:
AC 380V (Normal Industrial Power Supply)
AC220V Civil Power Supply (Optional)
DC Power Supply (Optional)
Motor Power (Optional)
Manual Power (Optional)
Manual/Electric (Optional)
Parameters of Mobile Elevator:
|
Model
|
Rated Capacity
kg
|
Max. Height
m
|
Min. Height
m
|
Platform Size
m
|
Motor Power
kw
|
Machine Weight
kg
|
|
SJY0.2-4
|
200
|
4
|
1.3
|
1.5×0.7
|
1.1
|
600
|
|
SJY0.3-6
|
300
|
6
|
1.3
|
1.8×0.84
|
1.5
|
900
|
|
SJY0.5-6
|
500
|
6
|
1.3
|
1.8×0.84
|
1.5
|
900
|
|
SJY0.3-9
|
300
|
9
|
1.45
|
2.2×1.15
|
1.5
|
1200
|
|
SJY0.5-9
|
500
|
9
|
1.45
|
2.2×1.15
|
2.2
|
1300
|
|
SJY0.3-11
|
300
|
11
|
1.6
|
2.2×1.15
|
2.2
|
1380
|
|
SJY0.5-11
|
500
|
11
|
1.6
|
2.2×1.15
|
2.2
|
1420
|
|
SJY0.3-14
|
300
|
14
|
1.85
|
2.5×1.3
|
3.0
|
2200
|
|
SJY0.3-16
|
300
|
16
|
2
|
2.6×1.5
|
4.0
|
2500
|
Wuxi Balance Machinery Equipment Co., Ltd, affiliated to Great Technology Group, established in 2004, is manufacturer and merchants with Lifting Platform which load man and goods. Our Group own two departments, one is Car components department, another is Suspended platform department. We are directly subordinate to latter, mainly export Suspended Platform and Aerial Work Platform and its components.
Our Suspended platform department boasts large-scale advanced sets of production equipments and testing instruments, like 10T smelting furnaces, 280T~2500T full automatic die casting robot system from Japan, more than 50 imported erect CNC procession centers, three-coordinates measuring machine (CMM) from Taiwan, optical spectrum analyzers and other whole set precision measuring equipments. We adhering to its enterprise spirit of "Every life is precious!". After continually research and specialists guide, we inosculate Core part LTD series hoists with car engine components technology. Our core components quality at the level of highest precision, lowest error rate, are reviewed favorably by domestic and abroad clients.
"Balance brand" Suspended Platform is our sole brand to enter into international market, it signify equilibrium and stable. Suspended Platform and Aerial Work Platform replace traditional scaffold for the purpose of construction, cleaning, maintenance of outer wall of high rise building with various application. With characteristics of simple operation, good stability, large capacity and difficult rust, our platform can lower operator's construction risk, reduce work intensity and enhance work efficiency. It's the best safe mate for sky operation.
Since establishment and expansion abroad market, Balance products have sold in over 30 countries and regions like Middle East, India, Europe, North America, Latin America, Brazil, Russia, ASEAN, etc. We gain a very high support and trust by clients with its excellent quality and sincere service by entire staff unremitting efforts and experiences from tough competition.
"Service as basis, Surviving on quality, developing with technology" is business principle of the Balance. We will march fearlessly onward, break through the field of low-to-high work platform, pioneer and invent continuously, and provide more all-around and better products and service by our sincerity and endeavor.
