Quick Details
Description
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: Balance
- Model Number: GTWY6-200S
- Material: High strength high-quality Aluminum Alloy
- Color: Red, Yellow, Blue, etc
- Suitable Workers Quantity: 1-2 persons
- Mast Quantity: Single, Double, Three, Four, Six
- Supporting Leg: 4 pcs
- Working Height: 4m, 6m, 8m, 9m, 10m, 12m, 14m, 16m, 21m, etc
- Rated Loading Capacity: 125kg, 150kg, 200kg, etc
- Walk Way: Manual or Automatic
- Drive Mode: Double Mast Man Lift accept different drive: AC, DC
- Merit/Advantage: High strength, Compact structure, Light weight, Lifting stable, etc
Specifications

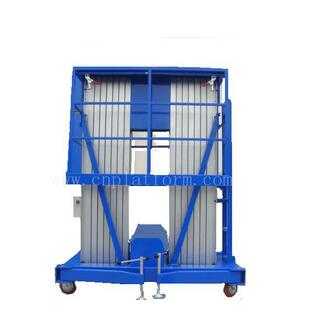

Double Mast Man Lift
1.CE certificated
2.Stable lifting & lowering
3.Safe & reliable with leveling stabilizer
4.Easy move
This platform has the following features:
1. Ergonomic control panel and easy for users to control the platform.
2. Hydraulic and electrical system with an Emergency lowering device enables you to lower the platform slowly to its ground position when power is unexpected fail.
3. In stabilizers equipped Aerial Work Platform, patented double protection outriggers eliminate the clearance between the stabilizer and chassis so as to avoid the equipment fluctuating.
4. High-strength aluminum alloy are used for all lifting mast, the unit is light, easy and convenient to move.
5. Compact design makes it easy in passing through narrow and lower passages; it can enter standard elevators in office buildings.
Double Mast Man Lift suitable for persons to do aerial work such as cleaning windows and ceilings and some maintains work.
Services:
We supply spare parts free for one year, and supply the technical supporting all the time.
Parameters of Double Mast Man Lift:
|
Type
|
Model
|
Working Height
m
|
Rated Capacity
kg
|
Platform Size
m
|
Motor Power
kw
|
Weight
kg
|
Packing Size
m
|
|
Single Mast
|
GTWY4-100
|
5.7
|
125
|
0.6×0.55
|
1.1
|
185
|
1.05×0.75×1.65
|
|
GTWY6-100
|
7.7
|
125
|
0.6×0.55
|
1.1
|
210
|
1.3×0.8×1.65
|
|
GTWY8-100
|
9.7
|
125
|
0.6×0.55
|
1.1
|
250
|
1.3×0.8×1.98
|
|
GTWY9-100
|
10.7
|
125
|
0.6×0.55
|
1.1
|
280
|
1.35×0.85×1.98
|
|
Dual- Mast
|
GTWY6-200S
|
7.7
|
200
|
1.18×0.6
|
1.1
|
320
|
1.35×0.85×1.65
|
|
GTWY8-200S
|
9.7
|
200
|
1.18×0.6
|
1.1
|
385
|
1.35×0.85×2
|
|
GTWY10-200S
|
11.7
|
200
|
1.38×0.6
|
1.1
|
490
|
1.55×0.95×2
|
|
GTWY12-200S
|
13.7
|
200
|
1.48×0.6
|
1.1
|
560
|
1.65×1×2
|
|
Tri-Mast
|
GTWY10-200
|
11.7
|
200
|
1.4×0.93
|
2.2
|
930
|
1.65×1.1×2.05
|
|
GTWY12-200
|
13.7
|
200
|
1.5×0.93
|
2.2
|
980
|
1.75×1.1×2.05
|
|
GTWY14-200
|
15.7
|
200
|
1.5×0.93
|
2.2
|
1000
|
1.75×1.1×2.42
|
|
Multi-Mast
|
GTWY16-160
|
17.7
|
150
|
1.48×0.8
|
1.5/0.75
|
1400
|
2.26×1.2×2.08
|
|
GTWY18-160
|
19.7
|
150
|
1.48×0.8
|
1.5/0.75
|
1500
|
2.26×1.2×2.18
|
|
GTWY20-160
|
21.7
|
150
|
1.58×0.8
|
1.5/2.2
|
1780
|
2.36×1.4×2.5
|
|
GTWY21-160
|
22.7
|
150
|
1.58×0.8
|
1.5/2.2
|
1880
|
2.36×1.4×2.6
|
Wuxi Balance Machinery Equipment Co., Ltd, affiliated to Great Technology Group, established in 2004, is manufacturer and merchants with Lifting Platform which load man and goods. Our Group own two departments, one is Car components department, another is Suspended platform department. We are directly subordinate to latter, mainly export Suspended Platform and Aerial Work Platform and its components.
Our Suspended platform department boasts large-scale advanced sets of production equipments and testing instruments, like 10T smelting furnaces, 280T~2500T full automatic die casting robot system from Japan, more than 50 imported erect CNC procession centers, three-coordinates measuring machine (CMM) from Taiwan, optical spectrum analyzers and other whole set precision measuring equipments. We adhering to its enterprise spirit of "Every life is precious!". After continually research and specialists guide, we inosculate Core part LTD series hoists with car engine components technology. Our core components quality at the level of highest precision, lowest error rate, are reviewed favorably by domestic and abroad clients.
"Balance brand" Suspended Platform is our sole brand to enter into international market, it signify equilibrium and stable. Suspended Platform and Aerial Work Platform replace traditional scaffold for the purpose of construction, cleaning, maintenance of outer wall of high rise building with various application. With characteristics of simple operation, good stability, large capacity and difficult rust, our platform can lower operator's construction risk, reduce work intensity and enhance work efficiency. It's the best safe mate for sky operation.
Since establishment and expansion abroad market, Balance products have sold in over 30 countries and regions like Middle East, India, Europe, North America, Latin America, Brazil, Russia, ASEAN, etc. We gain a very high support and trust by clients with its excellent quality and sincere service by entire staff unremitting efforts and experiences from tough competition.
"Service as basis, Surviving on quality, developing with technology" is business principle of the Balance. We will march fearlessly onward, break through the field of low-to-high work platform, pioneer and invent continuously, and provide more all-around and better products and service by our sincerity and endeavor.
"Thanks for our customer, give us strength to survive!"
"Thanks for our staff, give us confidence to make commitment!"
"Thanks for our competitor, push us keep straight ahead!"
