Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: MORN
- Model Number: TTC0.2-10
- Lift Mechanism: Lift Chain
- Lift Drive / Actuation: Hydraulic
- Power: 1.1kw
- Rated Loading Capacity: 200kg
- Min. Lifting Height: 2.1m
- Max. Lifting Height: 10m
- Table Size: 800*800mm
- Overall Dimensions: 1160*1000*2170mm
- Weight: 650kg
- Certification: CE
- Warranty: 12 months apart from man made faults
- After-sales Service Provided: Engineers available to service machinery overseas
- Max working height: 11.7m
- Main structure: hydraulic oil-cylinder
- Use: hydraulic telescopic mast lift
- Control mode: on the platform and remote control
- Guardrail height: 1100mm
- Move: Trailing
- Voltage: 220/380, single phase or according to local voltage
- Color: Blue, red or as customers' requirements
- Wind Capability: 5
- Polyurethane wheels: Dia200
Specifications

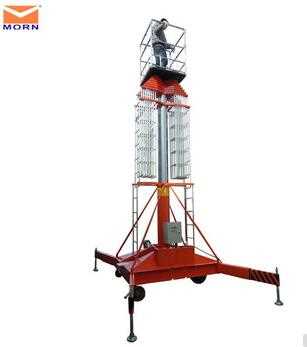

hydraulic telescopic cylinders lift
1. Lifting height: 10 m
2. Platform size: 800*800 mm
3. Max load: 200 kg
4. CE
10m hydrulic telescopic cylinders lift
1. Features
Operation: telescopic cylinders
Two types: single ladder and double ladders on both sides
Lifting heights: 4m-30m
Load capacity: 100kg-200kg
Power sources: 220V, 280V, 380V or chargeable batteries
2. Application
Mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls.
3. Model list
|
Model
|
Load
|
Table Size(mm)
|
Lifting Height
|
Working Height
|
Dry Weight
|
|
TTC-4
|
200 Kg
|
750*750
|
4 m
|
5.7 m
|
400 Kg
|
|
TTC-6
|
200 Kg
|
750*750
|
6 m
|
6.7 m
|
480 Kg
|
|
TTC-8
|
200 Kg
|
800*800
|
8 m
|
8.7 m
|
580 Kg
|
|
TTC-10
|
200 Kg
|
800*800
|
10 m
|
11.7m
|
650 Kg
|
|
TTC-12
|
200 Kg
|
800*800
|
12 m
|
13.7 m
|
900 Kg
|
|
TTC-14
|
200 Kg
|
800*800
|
14 m
|
15.7 m
|
1075 Kg
|
|
TTC-15
|
200 Kg
|
800*800
|
15 m
|
16.7 m
|
1200 Kg
|
|
TTC-30
|
200 Kg
|
800*800
|
30 m
|
31.7 m
|
2500Kg
|
|
TTC-N
|
Custom-made according to the requirement
|
Jinan SinicMech Machinery Co., Ltd. is a company which is professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using and is also the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler. We are a member of China Association of Warehouses And Storage.
Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its quality and capability had been tested by using in several national projects. Our products are compartmentalized to six big series and fifty varieties.
We have got a reputation by selling our goods towards domestic market and overseas market such as America, Canada, and German. We can custom-build good safety & high efficiency machines for you.
