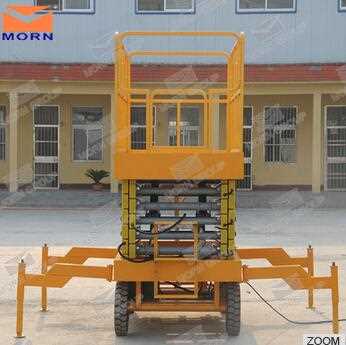

TS0.3-10 300kg hydraulic lift platform manual supporting legs
Scissors-style high-altitude platform for plant,site,hotels,airports,stations,terminals, sports arenas,such as tall buildings of the high-altitude equipment installation,mainte-nance and cleaning Health,the field of power facilities,over head pipes,and other lifting efficiency ideal equipment, Order-at-height safety,convenience,fas.
Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: MORN lift platform
- Model Number: TS0.3-10 lift platform
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3kw
- Rated Loading Capacity: 300kg
- Min. Lifting Height: 2000mm
- Max. Lifting Height: 10 m
- Table Size: 2120*1200mm
- Overall Dimensions: 2600*1500*1530mm
- Weight: 1600kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Leg: manual supporting legs
- Spare parts: 10 seal ring, 10 oil seal 2 travel switches
- Paint: epoxy paint
- Move: trailing
- Guardrail: 1100mm
- Platform: anti-skid
- Power source (optional): AC, DC or diesel
- Tyre: four inflate tyres
- Color: blue or red or optional
- Lift speed: 4-5m/min
Scissors-style high-altitude platform for plant,site,hotels,airports,stations,terminals, sports arenas,such as tall buildings of the high-altitude equipment installation,maintenance and cleaning Health,the field of power facilities,over head pipes,and other lifting efficiency ideal equipment, Order-at-height safety,convenience,fas.
|
Model
|
Lift height
|
Platfrom size(mm)
|
Load(Kg)
|
Dimensions(mm)
|
Self weight
|
|
TS0.3-4
|
4m
|
1650*800
|
300
|
1900*1000*1100
|
400KG
|
|
TS0.8-4
|
4m
|
1650*1100
|
800
|
1900*1200*1300
|
700KG
|
|
TS1.5-4
|
4m
|
1700*1500
|
1500
|
2000*1800*1500
|
1200KG
|
|
TS0.3-6
|
6m
|
1500*750
|
300
|
1700*900*1000
|
650KG
|
|
TS0.8-6
|
6m
|
1700*1200
|
800
|
2000*1500*1400
|
1300KG
|
|
TS1.5-6
|
6m
|
1800*1500
|
1500
|
2100*1800*1700
|
1650KG
|
|
TS0.3-8
|
8m
|
1640*750
|
300
|
1850*900*1390
|
720KG
|
|
TS0.8-8
|
8m
|
1800*1200
|
800
|
2300*1500*1500
|
1800KG
|
|
TS1.5-8
|
8m
|
2100*1500
|
1500
|
2600*2000*1800
|
2600KG
|
|
TS0.3-10
|
10m
|
2120*1200
|
300
|
2600*1500*1530
|
1600kg
|
|
TS0.8-10
|
10m
|
2200*1500
|
800
|
2600*2000*2000
|
2500KG
|
|
TS1.5-10
|
10m
|
2600*1500
|
1500
|
3000*2000*2000
|
2800KG
|
|
TS0.3-12
|
12m
|
2600*1500
|
300
|
3000*2000*1800
|
2500KG
|
|
TS0.8-12
|
12m
|
2600*1600
|
800
|
3000*2000*2000
|
3200KG
|
|
TS1.5-12
|
12m
|
2700*1600
|
1500
|
3200*2000*2100
|
3500KG
|
|
TS0.3-14
|
14m
|
2750*1500
|
300
|
3250*1950*1970
|
3000kg
|
|
TS0.8-14
|
14m
|
3100*1600
|
800
|
3500*2000*2200
|
3800KG
|
|
TS0.3-16
|
16m
|
3000*1600
|
300
|
3400*2000*2000
|
3600kg
|
|
TS0.3-18
|
18m
|
3200*1600
|
300
|
4000*2000*2200
|
4700kg
|
|
TS**-n
|
Custom-made according to requirement
|
Jinan SinicMech Machinery Co., Ltd. is a company which is professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using and is also the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler. We are a member of China Association of Warehouses And Storage.
Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its quality and capability had been tested by using in several national projects. Our products are compartmentalized to six big series and fifty varieties.
We have got a reputation by selling our goods towards domestic market and overseas market such as America, Canada, and German. We can custom-build good safety & high efficiency machines for you.
