Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: MORN trailer boom lift
- Model Number: ATB0.2-14
- Lift Mechanism: Articulated Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3kw
- Rated Loading Capacity: 200kg
- Min. Lifting Height: 1200mm
- Max. Lifting Height: 14000mm
- Table Size: 900*700*1100mm
- Overall Dimensions: 6400*1800*2200mm
- Weight: 1700kg
- Certification: CE
- Warranty: 12months apart from man made faults
- After-sales Service Provided: Engineers available to service machinery overseas
- Lift speed: 0.05-0.09m/s
- Voltage: 220v/380v, AC power, 3 phase, can also be made as local voltage
- use: trailing boom lift
- Guardrail(optional): 1100mm
- Rated pressure(Mpa): 12
- Rotation: 360 degree
- Color: yellow, blue, green, black as your requirement
- Platform: antiskid
- Max load capacity: 200kg
- Horizontal span: 6.5M
1. Introduce

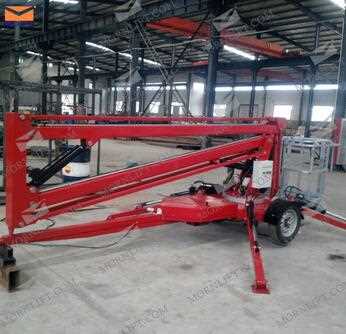

Trailing Articulated Boom Lift is one ideal lift platform for indoor or outdoor maintenance work, could rotate 360degree in aerial, with working height from 6m to 14m. Compact structure of lift could be used in tight space. Which can be car-carrying to everywhere. Platform size could be manufactured accordingly.
Widely used in roads, terminals, shopping malls, stadiums, residential property, factories and mines operating large-scale workshop.
2. Technicial parameter
|
Item
|
ATB0.2-8
|
ATB0.2-10
|
ATB0.2-12
|
ATB0.2-14
|
|
Platform size(mm)
|
900*700mm
|
|
Capacity(kg)
|
200
|
|
Lifting height(m)
|
8
|
10
|
12
|
14
|
|
Jib Rotation (°)
|
100
|
100
|
100
|
100
|
|
Rated pressure(Mpa)
|
12
|
|
Outriggers
|
4pcs auto shrink hydraulic legs
|
|
Turn around angle(°)
|
360
|
|
Power
|
220v/diesel/battery(optional)
|
3. Power
Power is optional here, diesel, battery or 220V/380V, three phase, which are up to the user.
Jinan SinicMech Machinery Co., Ltd. is a company which is professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using and is also the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler. We are a member of China Association of Warehouses And Storage.
Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its quality and capability had been tested by using in several national projects. Our products are compartmentalized to six big series and fifty varieties.
We have got a reputation by selling our goods towards domestic market and overseas market such as America, Canada, and German. We can custom-build good safety & high efficiency machines for you.
