Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: MORN

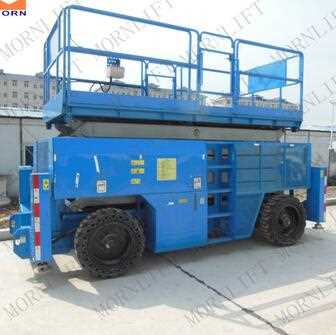

- Model Number: SPS-10RT
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 37kw
- Rated Loading Capacity: 1150kg
- Min. Lifting Height: 2.74m
- Max. Lifting Height: 10.08m
- Table Size: 3.95*1.83m
- Overall Dimensions: 4.03*2.28*2.74m
- Weight: 5850kg
- Certification: CE
- Warranty: 12 months
- After-sales Service Provided: Engineers available to service machinery overseas
- Color:: Blue or yellow or optional
- Driven & steering:: 4*4
- Ground clearance:: 230mm
- Fuel tank capacity:: 115L
- Grade ability:: 50%
- Max. driven speed (elevated):: 1.1km/h
- Max. driven speed (stowed):: 6.3km/h
- Extension deck:: 1.22*1.52m
- Min. Turning radius:: 5.2m
- Manufacturer: Yes
-- you can control it on the platform and on the chassis, operate easily and freely.
-- extension platform, large working place.
-- Removable guardrail.
-- 90 degree steering wheel can run in high and low speed.
-- Diesel power scissor lift is with powerful grade ability, 4-wheel driven, can be used in uneven ground easily.
-- This self-propelled diesel man lift can shift high and lower speeds.
-- Mostly used for working for outdoor work, such as factory maintain, building cleaning or site installation
|
Model No.
|
SPS-10RT
|
|
Max. Platform Height
|
11.78m
|
|
Max. working Height
|
10.08m
|
|
Ground Clearance
|
230mm
|
|
Lift Rated Capacity
|
1150kg
|
|
Lift capacity(extension deck)
|
230kg
|
|
Platform Size(A*B)
|
3.95×1.83m
|
|
Extension deck measurement
|
1.22*1.52m
|
|
Max. Drive Speed(Platform Stowed)
|
6.3km/h
|
|
Max. Drive Speed(Platform Elevated)
|
1.1km/h
|
|
Min. Turning Radius
|
5.2m
|
|
Grade-ability
|
50%
|
|
Solid Tyre
|
33/12-20m
|
|
Fuel tank volume
|
115L
|
|
Hydraulic tank volume
|
170L
|
|
Drive mode&steering wheel number
|
4*4
|
|
Rated power
|
37kw
|
|
Overall Length-D (without/with outriggers)
|
4.03/4.9mm
|
|
Overall Width -E
|
2.28m
|
|
Overall Height -C
|
2.74m
|
|
Overall Net Weight
|
5850kg
|
Advantages
---2-wheel hydraulic motor drive
---2-wheel steering
---High/low travel speed
---Extension deck
----Foldable guardrails
---Tilt sensor and Alarm
---Descend Alarm
---Safety Overhaul Support
---Timer
---Intelligent Charger
---Swing-out Tray
---Pothole Protection Device
---Emergency Descend Device
---Emergency Release Brake
---Anti-collision Protection of Platform
Jinan SinicMech Machinery Co., Ltd. is a company which is professional in producing the hydraulic lift equipment for logistics, warehouse, factory and construction using and is also the biggest producer in making aerial work platform, cylinder hydraulic aerial work platform, boom lift and dock leveler. We are a member of China Association of Warehouses And Storage.
Our product was awarded the first-class prize of Shandong Mechanical Designing Competition and its quality and capability had been tested by using in several national projects. Our products are compartmentalized to six big series and fifty varieties.
We have got a reputation by selling our goods towards domestic market and overseas market such as America, Canada, and German. We can custom-build good safety & high efficiency machines for you.
