Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: MORN
- Model Number: SSL0.7-2
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3kw
- Rated Loading Capacity: 700kg
- Min. Lifting Height: 350mm
- Max. Lifting Height: 2000mm
- Table Size: 1000x1200mm
- Overall Dimensions: 1060x1260x350mm
- Weight: 1200kg
- Certification: CE ISO9001
- Warranty: 1 Year
- After-sales Service Provided: Engineers available to service machinery overseas
- Safety interlocking: Hydraulic scissor lift will stop working if any door is open
- Overload protection: Prevent the lift overload
- Manganese steel structure: ZGMn13-4, ZGMn13-5
- Pump: Delixi, Italy Hydr-app
- Painting: Powder coating, smooth, anti-corrosion
- Power supply: AC power, 380V, 415V, 220V(3 phase)
- Optional configuration: Safety trip bar, control panel, foot switch etc
- Emergency decline valve: Protect scissor to prevent emergency
- Installation: In pit or on ground, free installation manual
- OEM: According to customer's requirements

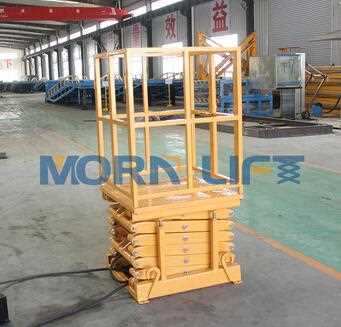

Scissor Lift Application
Hydraulic scissor lift table could convery goods or other items between different levels. MORN® Stationary Scissor Lift Series is applicable to a variety of applications for your basement, loading bay, warehouse, factory, home, car garage and so on.
|
Model
|
Load capacity
|
Lifting height
|
Weight
|
Platform size
|
Min height
|
Max height
|
|
SSL1-3
|
1000kg
|
3000mm
|
1600
|
1600x1200mm
|
782mm
|
3782mm
|
|
SSL1-4.8
|
1000kg
|
4800mm
|
2000
|
2000x1500mm
|
782mm
|
5582mm
|
|
SSL1-6.3
|
1000kg
|
6300mm
|
3280
|
3000x2385mm
|
836mm
|
7136mm
|
|
SSL1-7.9
|
1000kg
|
7900mm
|
3100
|
2000x1800mm
|
984mm
|
8884mm
|
|
SSL2-4.5
|
2000kg
|
4500mm
|
3300
|
2500x2200mm
|
850mm
|
5350mm
|
|
SSL2-6.3
|
2000kg
|
6300mm
|
3400
|
2800x2000mm
|
918mm
|
7218mm
|
|
SSL2-5
|
2000kg
|
5000mm
|
3000
|
4500x2160mm
|
850mm
|
5350mm
|
|
SSL3-6.4
|
3000kg
|
6400mm
|
8500
|
7000x4000mm
|
910mm
|
7310mm
|
Please do not be confined to above listed models, as the hydraulic scissor lift table is customizable in loading capacity, platform size, and lifting height for your individual requirements. So please inform your specific need.
Detailed parts of hydraulic scissor lift table
All the parts we use are first class quality and well-known brands. The parts are standard model with item code, which is very convenient to replace them. Delivery is also fast for parts.
