Quick Details
Description

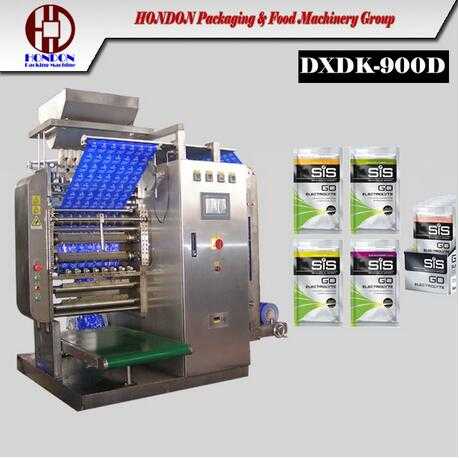

- Model NO.: Model DXDK-900D
- Application: Cleaning, Detergent, Skin Care Products, Oil
- Driven Type: Electric
- Packaging: Plastic Bags, Like Pet/PE, Pet/Al/PE Bags etc.
- Model: Dxdk-900d
- Bag Size: (L)50-150mm, (W)40-105mm
- Capacity of Per-Line: 30-79 Bags/Min
- Power: 380V, 3 Phase 4 Wires, 8.5kw
- Dimension (L*W*H): 1650*1400*2200mm(L*W*H)
- Transport Package: Wooden Case as Export Standard
- Origin: Tianjin, China
- Automatic Grade: Automatic
- Type: High-Speed Packing Machine
- Material Type: Grain
- Packaging Material: Pet/PE, Pet/Al/PE, Pet/Plated Al/PE. Paper/PE, etc
- Quality Material: 304 Stainless Steel
- Filling Range: 1-40ml
- Max Width of Film: 900mm
- Weight: 1500kg
- Trademark: Hondon
- Specification: CE, CM, GMP & SGS Standards
- HS Code: 8422303090
Application:
This model is specially designed for granules, like white sugar, food spices, plant, coffee, electuary, tabacco sprouting coated seeds etc.
Main features:
1. All 304 Stainless Steel cover to meet the CE, CM & GMP Standard.
2. High-speed, the capacity is about 60 bags/line, it can make different numbers lanes according to the width of the bag you want to pack. The max width for the packing film will be 900mm.
3. Special designed Volume Cups as the feeding part of this packing machine to make sure the accurate of the mesuring for the bag. The numbers of the volume cups will be designed according to the lanes of the packing machine.
4. The sealing system is also specially designed bu the engineer to make sure the seal side of the bag gas-tight, neat and beautiful.
5. All the process of the operation can be done via the computer controller with this packing machine, it is intelligent one, you can touch every button on the compter to ralize any opration of this packing machine.
5. Automatic rectify deviation system is sdopted by this packing machine to make sure the complete and neat bags made by this packing machine,
6. None-limited speed adjusting device is adopted by this packing machine to make sure the high speed of this packing machine.
All the process of bag making, filling, measuring, cutting and counting etc. Can be done automatically! It is fill intelligence!
7. The sealing way for this model is four sides seal rather than three sides seal which makes the bag more beautiful and more popular by the clients from all around the world.
There are more informations about this packing machine, if you have further needed or confusion, pls. Feel free to contact us at any time without any hesitation, you will be very welcomed!
|
Model
|
DXDK-900D
|
|
Bag size
|
(L)50-150mm (W)40-105mm
|
|
Filling Range
|
1-40ml
|
|
Capacity of per-line
|
30-70 bags/min
|
|
Max Width of film
|
900mm
|
|
Power
|
380V, three pahse four wires 8.5Kw
|
|
Weight
|
1500kg
|
|
Dimension
|
1650*1400*2200mm(L*W*H)
|
We Tianjin Hondon Packing & Food Machinery Group is a big manufacturer for producing all kinds of packing machines, like granules, powder, liquid, sticky liquid, sauce, tablets etc.
We had been in this filed for more than 28 years.
All of our packing machines have passed the SGS certificate authorized by Switzerland, and all of them have gained the CE, CM, GMP & ISO9001: 2008 Certificates. We had applied the patent for each packing machines and we are the member of the association of Pharmacy Industry in China.
All of our packing machines are widely used in Medicine, Food, Cosmetic, Chemical, Beverage, Vegetarian diet spices, Teas industries etic for the gruanules, powder, sauce, liquid, tablets's soft bags packings. All the process of bag formating, products filling, measuring, sealing, cutting and counting, date printing etc. Can be done automatically and correctly.
Most of our packing machines make up the blank of our country in the packing machines field. All the packing machines will be inspected strictly via the quality inspecting department before shipping out of our factory.
All of our packing machine are very popular by the clients from domestic and overseas, lots of the machines had sold to America, Canada, Italy, Egypt, Turkey, Iran, Russia, Malaysia etc.
Operating honest, Guiding the Industries in packing field, Producing the bantique packing machines and Famous in all around the world are the goal of our company. We will supply some unstandard packing machine according to the clients requiremenets at the same time of producing standard packing machines.
Really hope we can establish a good and long business relationship with the clients from domest and overseas to bring out a good and prospecting future.
