Quick Details
Description

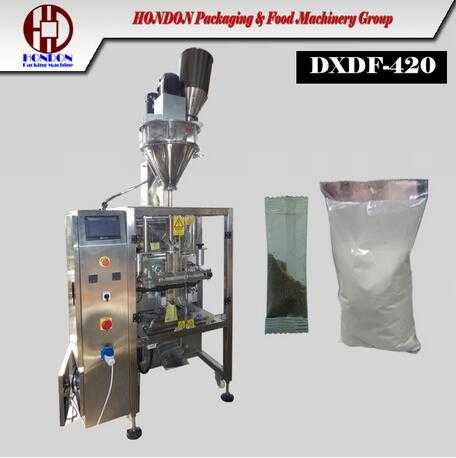

- Model NO.: DXDF-420
- Application: Cleaning, Detergent, Cosmetics, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil
- Driven Type: Electric
- Packaging: Stand-up Pouch, Bags, Foil, Pouch
- Model: Dxdf-420
- Packing Speed: 35 Bags Per Minute
- Bag Size: L: 50-230mm W:60-200mm
- Power: 220V, 3.5kw
- Max Film Width: 420mm
- Transport Package: Wooden Case for Export
- Origin: China Tianjin
- Automatic Grade: Automatic
- Type: Filling and Sealing Machine
- Material Type: Powder
- Packaging Material: Plastic, Paper, PE/Plated Al/PE; Pet/PE; Nylon/PE;
- Dimension: 1300X960X1150
- Packing Machine System: Touch Screen + PLC
- Air Consumption: 0.2 M3/Min 0.6mpa
- Weight: 350kgs
- Trademark: Hondon
- Specification: CE, SGS
- HS Code: 8422303090
Machine Instruction
Construction: Stainless steel
Drive: Servo
Hot Stamp Printer: Tanee
Photocell: Banner
Control system:
Mitsubishi PLC or else brand
Color touch screen panel
Safety: Safety Switch in door And Relay
Film reel: Max. Outside diameter 400mm, Ø 75 mm core
Optional Devices
Nitrogen Gas Flushing
Gusset Device
Air Expelled
Hole Punch Device
Special Sealing Jaws
Film Tracking Device
Tear Notch Device
Material Stopper
Bag Support
PE Sealing System
Static Charge Eliminator
|
Main Technical Data
|
F420
|
F520
|
F620
|
|
Max. film width
|
420mm
|
520mm
|
620mm
|
|
Bag width
|
60-200mm
|
80-250mm
|
100-300mm
|
|
Bag length
|
50-230mm
|
50-300mm
|
50-370
|
|
Packing speed
|
10-100bpm
|
10-100bpm
|
5-100bpm
|
|
Power supply
|
220 V 50 Hz 3.5KW
|
220 V 50 Hz 4KW
|
220 V 50 Hz 4.5KW
|
|
Air requests
|
0.2M 3 /min, 0.6Mpa
|
0.2M 3 /min, 0.6Mpa
|
0.2M 3 /min, 0.6Mpa
|
|
Outer Dimension
|
1300*960*1150mm
|
1550*1160*1480
|
1600*1260*1680mm
|
We Tianjin Hondon Packing & Food Machinery Group is a big manufacturer for producing all kinds of packing machines, like granules, powder, liquid, sticky liquid, sauce, tablets etc.
We had been in this filed for more than 28 years.
All of our packing machines have passed the SGS certificate authorized by Switzerland, and all of them have gained the CE, CM, GMP & ISO9001: 2008 Certificates. We had applied the patent for each packing machines and we are the member of the association of Pharmacy Industry in China.
All of our packing machines are widely used in Medicine, Food, Cosmetic, Chemical, Beverage, Vegetarian diet spices, Teas industries etic for the gruanules, powder, sauce, liquid, tablets's soft bags packings. All the process of bag formating, products filling, measuring, sealing, cutting and counting, date printing etc. Can be done automatically and correctly.
Most of our packing machines make up the blank of our country in the packing machines field. All the packing machines will be inspected strictly via the quality inspecting department before shipping out of our factory.
All of our packing machine are very popular by the clients from domestic and overseas, lots of the machines had sold to America, Canada, Italy, Egypt, Turkey, Iran, Russia, Malaysia etc.
Operating honest, Guiding the Industries in packing field, Producing the bantique packing machines and Famous in all around the world are the goal of our company. We will supply some unstandard packing machine according to the clients requiremenets at the same time of producing standard packing machines.
Really hope we can establish a good and long business relationship with the clients from domest and overseas to bring out a good and prospecting future.
