Quick Details
Description
- Model NO.: MS-101A
- Strapping Material: Plastic Tape
- Automatic Grade: Automatic
- Species: Vegetable Strapping Machine
- Driven Type: Electric
- Strapping Force: 80kg
- Frame Size: W800mm*H600mm
- Voltage: 380V
- Machine Size: 1400*630*1430mm(L*W*H)
- Working Table Height: 750mm
- Trademark: MOTECH
- Specification: CE; ROHS; TUV; IEC
- HS Code: 8422400000
- Application: Oil, Hair Care Products, Cosmetics, Carbonated Drinks, Cleaning, Detergent, Milk, Yogurt, Pure Water, Alcoholic Beverages, Fruit Drinks
- Packaging: Cartons
- Strapping Mode: Welding Type
- Packaging Material: Wood
- Structure: Opening and Closing Track Strapping
- Strapping Speed: Max 1.5 Second/Strap
- Strap Width: 9-15mm
- Power: 0.75kw 50Hz
- Min.Packing Size: L>=50mm*W(No Limit)*H(No Limit)
- Net Weight: 200kg
- Transport Package: Inner Wrapping Film Outer Plywood Case
- Origin: Shanghai China
MOTECH hot selling Automatic Strapping Machine with PLC control system
Automatic strapping machine

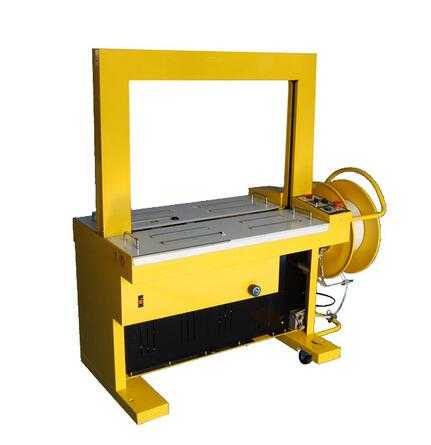

1.Description of MS-101A automatic strapping machine
MS-101A automatic box strapping machine is a productive solution to most polypropylene strapping tasks.This automatic Arch Strapping Machine features the "Auto-Feeding" function that automatically feeds polypropylene strapping to arch and is ready for each application.
2.Main characteristic of automatic strapping machine
1.Steel knife box,wear a higher degree.
2.Unique design tension,tightening stronger.
3.Clamshell panels,repair warranty.
4.The new electric devices,heating fast,high speed and long use life .
5.Single-chip electronic control,fully functional,easy to operate of the strapping machine.
6.The machine adopts international brand electrical parts which ensure the machines good
quality.
7.Electrical accessiores:"LG" PLC control,and"ORMON"photoelectric switch control,Schneider relay.
8.It can be used individually,and equipped with designed conveyor to fulfill unmanned
strapping system.
9.Add on a safety device,built for 24 hours continuous operation
11.Strapping type:
Inching, manual operation, continual packing, ball switch and food switch
3.Technical Parameter of MS-101A automatic box strapping machine
|
Model
|
MS-101A
|
|
Strapping force
|
80kg
|
|
Strapping speed
|
Max 1.5 second/strap
|
|
Frame size
|
W800mm*H600mm
|
|
Strap width
|
9-15mm
|
|
Voltage
|
380V
|
|
Power
|
0.75KW 50HZ
|
|
Machine size
|
1400*630*1430mm(L*W*H)
|
|
Min.packing size
|
L≥50mm*W(no limit)*H(no limit)
|
|
Working table height
|
750mm
|
|
Net weight
|
200kg
|
