Quick Details
Description
- Model NO.: MS--100I
- Strapping Material: Plastic Tape
- Automatic Grade: Automatic
- Species: Vegetable Strapping Machine
- Driven Type: Electric
- Strapping Force: 80kg
- Frame Size: W800mm*H600mm
- Voltage: 380V
- Machine Size: 1400*630*1430mm(L*W*H)
- Working Table Height: 750mm
- Trademark: MOTECH
- Specification: CE; ROHS; TUV; IEC
- HS Code: 8422400000
- Application: Oil, Hair Care Products, Cosmetics, Carbonated Drinks, Cleaning, Detergent, Milk, Yogurt, Pure Water, Alcoholic Beverages, Fruit Drinks
- Packaging: Cartons
- Strapping Mode: Welding Type
- Packaging Material: Wood
- Structure: Opening and Closing Track Strapping
- Strapping Speed: Max 1.5 Second/Strap
- Strap Width: 9-15mm
- Power: 0.75kw 50Hz
- Min.Packing Size: L>=50mm*W(No Limit)*H(No Limit)
- Net Weight: 200kg
- Transport Package: Inner Wrapping Film Outer Plywood Case
- Origin: Shanghai China

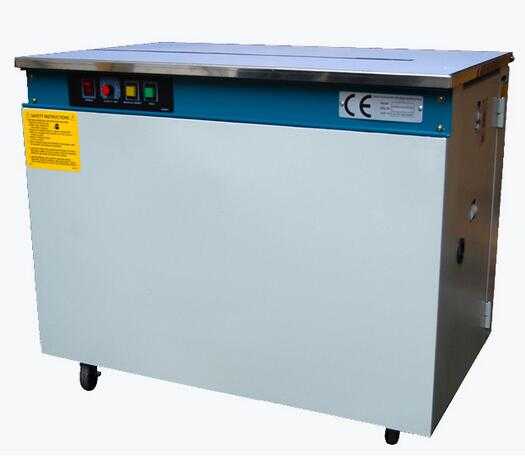

1.Description of MS-100I Semi-automatic strapping machine
The strapping machine adopts PP strap as packing material. It is widely used in home appliance, food, general merchandise, medicine production, chemical industry, printing, post office and textile departments. Its economy and durability!
Application(Strapping Machine):
It applies to the export enterprises of iron, metal, textile, household electric appliance, foodstuff and daily merchandise, specialized in strapping big and heavy pallets.
Technical Characters of Strapping Machine:
1. It used PCB control system: Ease of maintenance and replacement.
2. High efficiency strapping speed: Only takes 1.5 seconds for strapping one polypropylene strap.
3. It used instant-heating systems: The machine will be in best strapping state within 5 seconds after you start the machine.
4. The machine will automatically stop and be in standby state when you don't operate it beyond 60 seconds.
5. Electromagnetic clutch and Coupled-axle transmission: High-speed, low-noise and smoothly.
6. The high and the low type can be changed by hand: If you want change the high table into low table, you just move the strap plate from the interior of the machine to the right-hand side of the machine, and replace the 4short legs and the brake lever. Reverse the above procedures, you can change the low table into high table.
7. The height of the machine can be adjusted according to the height of the operator and the working demands.
8. If the working ground is not level, you can adjust the length of the 4 legs then keep the machine level.
Options
1. Mechanical tension or electronical tension is optional
2. Outside tension arm or inside tension arm is optional.
3. Safety stop switch.
4. Any color is available.
2.Main Technical Parameter
|
Model
|
MS-100I
|
|
Voltage(v/hz)
|
AC 220V/50Hz
|
|
Power(w)
|
250w
|
|
Max. Strapping Force(N)
|
40-480N
|
|
PP Tape Width(mm)
|
9-15mm
|
|
PP Tape Thickness(mm)
|
0.45-0.85
|
|
Strapping speed(s/strap)
|
1.8 second/strap
|
|
Max. PP Tape Reel(mm)
|
280mm
|
|
G.W(kg)
|
85kg
|
|
Dimensions(mm)
|
925×585×810mm
|
