Quick Details
Description
- Model NO.: MP-165CS
- Type: Prestretching Wrapping Machine
- Application: Drinks, Cleaning, Detergent, Skin Care Products, Cosmetics, Oil, Hair Care Products, Dairy Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Inclusion Degree: Fully Wrapped Winding Machine
- Film Frame Structure: Pre Tension
- Packing Speed(Loads/H): 30-40
- Wrapping Height(mm): 2032
- Turntable Speed(Rpm/Min): 3-12(Adjustable)
- Power(Kw/Hz/a): 1.1/220/50/16
- PLC: Simens(0806mr-A1)
- Trademark: MOTECH
- Specification: 2700 L 1650 W 2475 H
- HS Code: 8422400000
- Packaging Type: Pallet
- Driven Type: Electric
- Automatic Grade: Automatic
- Structure: Pallet Wrapping Machine
- Series: T Series - Pallet Wrapping Machine
- Wrapping Size(L×w)(mm): (500-1200)*(500-1200)
- Turntable Diameter(mm): 1750
- Turntable Loading(Kg): 2167
- Motors: Simens/Jsk(Hongkong)
- VFD: Imens V20
- Transport Package: Inner Wrapping Film and Wooden Case Packaged
- Origin: Shanghai China
MOTECH is leading provider of integrated packaging products and solutions for food,beverage,household goods and pharmaceutical industries.With over 10 years of experience Motech packaging provides a complete end-to-end packaging solution by offering state of-the-art packaging equipment, installation,training,service and supplies

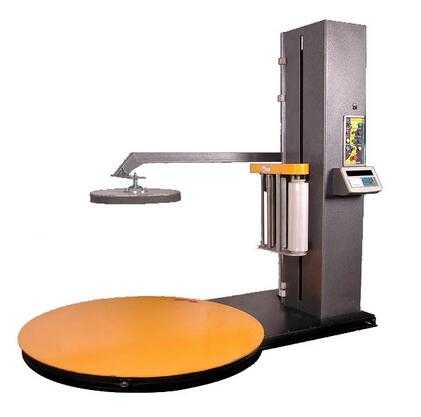

World Most Advanced Automatic Pre-Stretch Pallet Wrapper
Automatic top-plate pre-stretch pallet wrapping machine are used to wrap stretch film around a loaded pallet, this model more suitable for tall and unstable goods. Top-plate provides a press to the top of load and ensure it safety wrapping.Additionally, Wrapped loads can easily be separated and identified.
Application(Automatic top-plate pre-stretch pallet wrapping machine):
It is widely used in chemical industry, electronic industry, building materials, home appliances, papermaking, foodstuff and drink etc.
Featuresof Automatic top-plate pre-stretch pallet wrapping machine:
1.Control System: OMRON PLC controller, Photo-eye pallet height sensor.3-12RPM variable turntable speed by frequency changer.
2.1650mm diameter structural steel plate. 85mm low profile turntable. Position turntable alignment.
3. Top-plate: the top-plate according the load height to press down automatic.
4. Turntable soft start/soft stop, heavy duty chain drive.
5. Variable film tension control.
6. Heavy duty chain carriage lift, Calm and safety.
7. Safety stops to avoid foot crush.
8. Option: Hinged mast for easy handing, Rear for lift transportable, Ramp
9. Special turntable sizes can be customized!
Technical Specification(Automatic top-plate pre-stretch pallet wrapping machine):
|
Model
|
MP-165CS(Economical type)
|
MP-165CS(Standard type)
|
|
Packing Speed(loads/h)
|
20-40
|
20-40
|
|
Wrapping Size(L×W)(mm)
|
(500-1200)×(500×1200)
|
|
Wrapping height(mm)
|
2000
|
|
Turntable diameter(mm)
|
1650
|
|
Turntable speed(rpm/min)
|
3-12
|
|
Turntable loading(Kg)
|
2000
|
|
Top-Plate pressure(Kg)
|
20-50
|
|
Power(kw/v/hz/A)
|
1.1/220/50/20
|
|
Gross Weight(kg)
|
620
|
800
|
|
Package Size(mm)
|
2745×1650×2895
|
2745×1650×3300
|
