Quick Details
Description

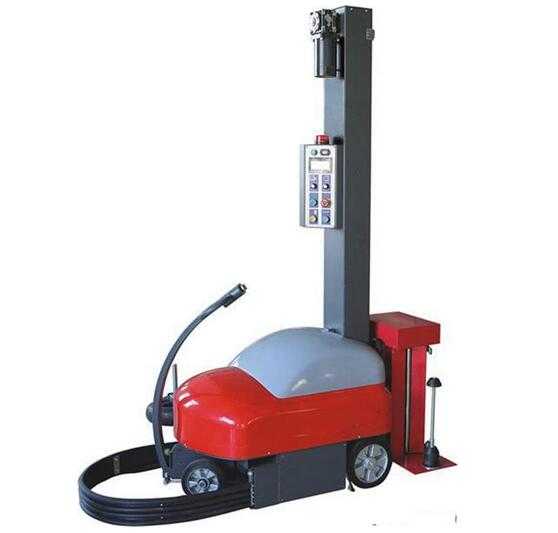

- Model NO.: MD-TP45101
- Type: Cylindrical Wrapping Machine
- Application: Drinks, Cleaning, Detergent, Skin Care Products, Cosmetics, Oil, Hair Care Products, Dairy Products, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Inclusion Degree: Half Winding Machine
- Film Frame Structure: Pre Tension
- Model: T1650eb
- Wrapping Size(L×w)(mm): (500-1000)×(500×1200)
- Turntable Diameter(mm): 1650
- Turntable Loading(Kg): 1500
- Gross Weight(Kg): 720
- Trademark: Motech
- Specification: CE stardard
- HS Code: 8422309010
- Packaging Type: Wooden Box
- Driven Type: Pneumatic
- Automatic Grade: Automatic
- Structure: Pallet Wrapping Machine
- Series: T Series - Pallet Wrapping Machine
- Packing Speed(Loads/H): 20-40
- Wrapping Height(mm): 2400
- Turntable Speed(Rpm/Min): 3-12
- Power(Kw/V/Hz/a): 1.2/220/50/20
- Package Size(mm): 2745×1650×2890
- Transport Package: Wooden Packing Case
- Origin: Shanghai
Machine Description:
all function parameters on display
Bottom pallet wrapping rounds from 0 -10
Top pallet wrapping rounds from 0-10
Photocell sensing externally adjustable
Spool carriage up/downward speed adjustable from 1,3 a 5, 4 M/MIN
4 separate wrapping cycles
Double cycle (upward/downward)
Single cycle (only upward or only downward)
Fixed height of reinforcing wrapping rounds
Manually adjustable wrap style
Machine Features:
No pallet size limit
Foldable mast
One-man-install
Move easily
Technical Parameters:
|
Control System:
|
PLC control
|
|
Power supply
|
AC220V/50-60HZ 10A
|
|
Battery
|
100AH(12V) 2 Pcs
|
|
Battery charging time
|
8-10 H
|
|
Rated Duty Cycle
|
8 H
|
|
Drive motor power
|
0.4KW (DC motor with governor)
|
|
Lifting motor power
|
0.2KW (DC motor with governor)
|
|
Film extension motor power
|
0.35KW (DC motor with governor)
|
|
Minimum wrapping size
|
600*600mm
|
|
Maximum traveling speed
|
62min/min
|
|
Maximum Film spool diameter
|
250mm
|
|
Internal diameter
|
75mm
|
|
Film spool height
|
500mm
|
|
Machine weight
|
320KG
|
|
Maximum pallet height
|
2200mm
|
General (Automatic top-plate pre-stretch pallet wrapping machine):
Automatic top-plate pre-stretch pallet wrapping machine are used to wrap stretch film around a loaded pallet, this model more suitable for tall and unstable goods. Top-plate provides a press to the top of load and ensure it safety wrapping.Additionally, Wrapped loads can easily be separated and identified.
Application(Automatic top-plate pre-stretch pallet wrapping machine):
It is widely used in chemical industry, electronic industry, building materials, home appliances, papermaking, foodstuff and drink etc.
Featuresof Automatic top-plate pre-stretch pallet wrapping machine:
1.Control System: OMRON PLC controller, Photo-eye pallet height sensor.3-12RPM variable turntable speed by frequency changer.
2.1650mm diameter structural steel plate. 85mm low profile turntable. Position turntable alignment.
3. Top-plate: the top-plate according the load height to press down automatic.
4. Turntable soft start/soft stop, heavy duty chain drive.
5. Variable film tension control.
6. Heavy duty chain carriage lift, Calm and safety.
7. Safety stops to avoid foot crush.
8. Option: Hinged mast for easy handing, Rear for lift transportable, Ramp
9. Special turntable sizes can be customized!
