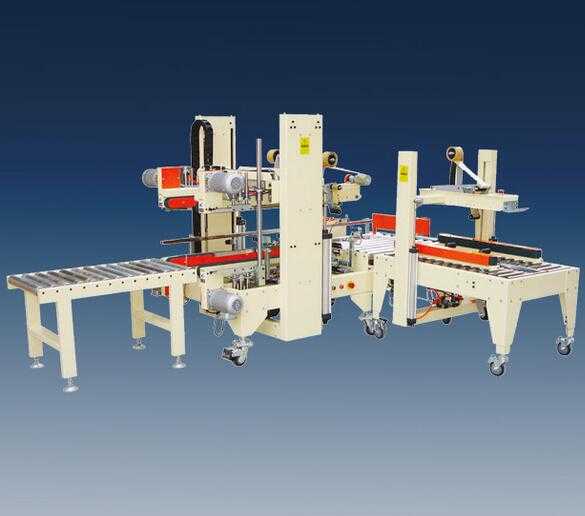

CS5050AF-2 CE stardard Automatic Flaps Folding Carton Sealer

The Semi-automatic Flaps Folding Carton Sealer is a kind of flow-line equipments, With advanced pneumatic adjusting system and belt driving system, Using for folding tops flaps, sealing tops and bottoms of cartons automatically; It can seal different size of cartons at one time without stop. It is used widely for packing all sorts of productions with papery boxboards.

Application(Semi-automatic Flaps Folding Carton Sealer):
It applies to packing all sorts of productions with papery boxboards.

Technical Characters of Semi-automatic Flaps Folding Carton Sealer:
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons automatically.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Both sides of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility.
5. Easy operation and simple maintenance.
6. Automatic alarm and closing down system when faults occur.

Technical Specification(Semi-automatic Flaps Folding Carton Sealer):
Model
CS5050F
Voltage
220V/50Hz or 380V/50 Hz
Power
240W
Packing Speed
12-15cartons/min
Adhesive Tape Width
48-75mm
Table Height
580-780mm
Carton Length
200-500mm
Carton Width
150-500mm
Carton Height
150-500mm
Air Pressure(MPa)
0.6-0.8Mpa
Weight
230kg
Machine Size
1700× 880× 1450mm

Application(Flaps Folding Carton Sealer):
Flaps Folding Carton Sealer is a kind of flow-line equipment, with advanced belt driving system, using for folding tops flaps, sealing tops and bottoms of cartons automatically; It is used widely for packing all sorts of productions with papery boxboards.
Features(Flaps Folding Carton Sealer):
1. It can adjust width and height size of the machine to adapt to a variety sizes of cartons by hand.
2. Imported pneumatic and electric components ensure trouble-free operation for a long time.
3. Both sides of the belt driven, High speed and smoothly.
4. Install large casters for easy mobility.
5. Easy operation and simple maintenance.
