Quick Details
Description
- Type: Filling Machine
- Condition: New
- Application: Apparel, Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles, WATER
- Packaging Type: Bags, Bottles, Cartons
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 380
- Power: 7.3KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Kinglife
- Model Number: XGF18-18-6
- Dimension(L*W*H): 2470 1970 2350 mm
- Weight: 3000
- Certification: CE ISO
- After-sales Service Provided: Overseas third-party support available
- Production Capacity 5000-8000 bottles/h:automatic
- bottle filling: mineral water/pure water
- Water consumption: 18000L/hour
- Capacity: 8000pcs/hour
- Payment term: 30% prepayment and the balance before delivery
- Warranty: 3 year and life long after service
- Port: Shenzhen port
- Name: filling machine
- OEM: Provided
- name: water packing machine
Main Technological Parameters
Model: XGF18/18/6
Capacity: 5000-8000
Filling precision: <5mm surface location
PET bottle Specifications: 0.1L~1.5L
Bottle neck 20-40
Bottles height: 150-340mm
Bottle diameter: 50-100mm
Apply to the screw-shaped plastic caps(26-35mm)
Bottle washing pressure: 0.18Mpa
Water consumption: 1800kg/h
Air Source pressure: Atmospheric pressure
Air Consumption: 0.3cbm
Total power: 7.3kw
Total weight: 3000kg
Overall dimension: 2470 1970 2350 mm

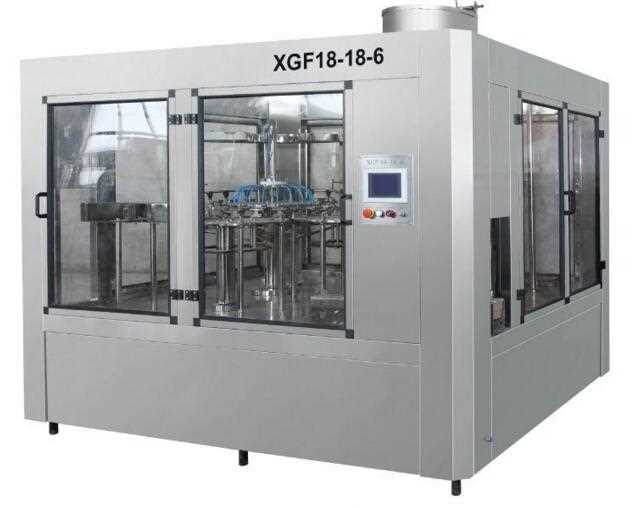

Applicability of Washing, Filling and Capping (Three-in One) Unit
XGF 18/18 /6 Washing-Filling-Capping (Three-in-One) Unit made by our company is a new product which is researched and developed on the base of importing ,assimilating and absorbing the advanced technology of the same kind of domestic and foreign products, combining several-year-production experience of the company. The unit collects washing, filling and capping together. It is driven by a transmission motor. It has advantages, such as high automation level, compact structure, beautiful appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity and others. It is an ideal no-gas liquid filling production equipment in the country. It is mainly suitable for filling and capping of round or square polyester bottles. According to the demands of different specifications of users, it is only changed a little in design to meet the user’s demands.
Developing from our honorable parent company of Shenzhen Angel Drinking Water Equipment Co., Ltd., Shenzhen Kinglife Environmental Technology Co., Ltd. is engaged in the R&D, manufacture and marketing of ultra-filtration (UF) / reverse osmosis (RO) water filters and water purifiers.
Corporate History & Honors:
2001 - Shenzhen Kinglife Environmental Technology Co., Ltd. was founded.
2002 - Our ultrafiltration water filters were launched into the market.
2003 - Our reverse osmosis water purifiers were launched into the market.
2004 - We were invited to join Water Quality Association.
2004 - Our ultrafiltration water filters were awarded "Top Ten Brand in China" and "Environmental Protection Products".
2005 - Our filter products were notarized and awarded "Top Ten Quality Brands of Filter Products in China".
2005 - Our KDF filters were successfully patented and later were awarded "National Technology Invention Award" and "National Science and Technology Progress Award".
2005 - We were awarded "Asia Pacific (International) Environmental Protection Scientific and Technological Innovation Award" and became an honorable member of Asia Pacific Environmental Protection Association.
2008 - Our products were awarded "China Well-Known Brand".
With the support of our parent company, we also provide the following products and services:
1. Design, installation and training of reverse osmosis / ultrafiltration water treatment equipment with production capacity ranging from 300L/H to 100,000L/H
2. Design, installation and training of full sets of 0.25L to 6L small bottle mineral / pure water bottling lines
3. Design, installation and training of full sets of linear / monoblock type semi-automatic and fully automatic equipment with production capacity up to 34,000BPH (bottle per hour)
4. Design, installation and training of full sets of 3/5/6 gallon semi-automatic and fully automatic water filling & packaging production lines with production capacity from 30BPH to 1,200BPH
5. Design, installation and training of full sets of juice / carbonated drink filling & packaging production lines
6. Design, installation and training of 0.05 cubic meters/hour to 20 cubic meters/hour sea water desalination equipment for villas, boats and small islands.
7. Automatic water vending machines for dormitories, schools and living area
8. Water dispensers / coolers for families or offices
We are honored to announce the following customer list:
1. Walmart China - constant pressure pure water supply
2. Carrefour China - pure drinking water supply
3. BYD - pure water bottling plant supply
4. TCL - pure drinking water supply
5. Culligan Haiti - sachet pure water filling plant, 0.5~1.5L pure water bottling plant, 5gallon pure water bottling plant
6. M2O Sudan - 600ml and 1500ml mineral water bottling plant
7. AQUAPLUS Montenegro - 0.5~1.5L and 5gallon pure water filling plant
