Quick Details
Description
- Type: Wrapping Machine
- Condition: New
- Application: Beverage, Chemical, Commodity, Food, Machinery & Hardware, Medical, Textiles
- Packaging Type: Barrel, Bottles, Cans, Cartons, Case
- Packaging Material: Plastic
- Automatic Grade: Automatic
- Driven Type: Pneumatic
- Voltage: 380
- Power: 19KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: Kinglife
- Model Number: JF-650
- Dimension(L*W*H): 3500*1200*2400mm
- Weight: 350kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Control method: Fully automatic
- Category: Two rollers film
- Electrical components:Siemens/OMRON/AUTONICS
- Air cylinder: UNIQUC
- Cocontactor: SIEMENS
- PLC: OMRON
- Application pressure: 0.6-0.8Mpa
- Air consumption: 0.4m3/pm

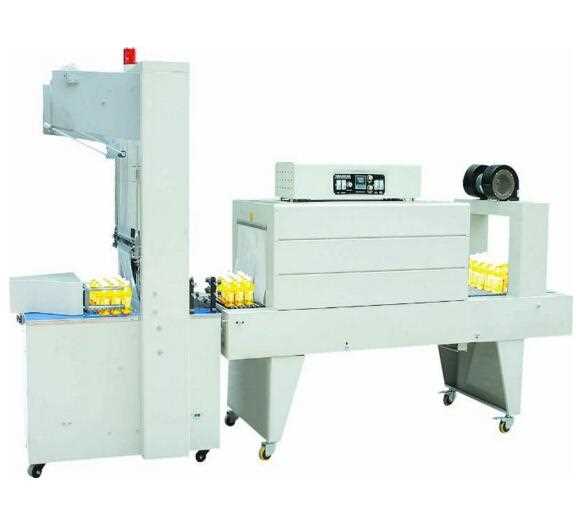

- name: semi automatic shrink wrapping machine
How Semi Automatic Shrink Wrapping Machine works
After filling, capping and labeling, product to be shrink packaged is presented to the machine on a conveyor or trolley.
Here, the operator assembles a desired group of product in the front of the hand operated(or pneumatically assisted) pusher. Once ready, the operator advances the pusher to transfer the pack to the welding and wrapping station.
At this stage the pack is clamped. As the operator returns the pusher the welding bar automatically descends to complete the wrap, cut and seal the film. In the meantime, operator prepares for next group of products.
As the welding bar ascends the operator advances the pusher to transfer the new collation into welding position, at the same time displacing the previously wrapped collation onto continuously moving shrink tunnel conveyor.
The wrapped collation soon enters the shrink tunnel chamber where recirculated hot air causes the wrap to shrink and tightly confirm to the contours of the contents.
Once the pack is out of the chamber, forced air cooling is used to tighten the sleeve wrap to achieve a strong, secure pack ready for stacking on a pallet or placing in a shipping carton.
Sleeve Wrapper Features
Heavy duty frame construction made on painted steel tube.
Wheels and height adjustable legs for transport and positioning.
Flexibility to wrap trayed and trayless packs.
Accepts a package size of 26"L X 20"W X 15"H.
Adjustable pusher assembly with two hand start switches.
Adjustable product hold down device to press containers of different height.
Adjustable product clamp and dead plate for containers of different diameter.
Convenient controls for easy set up.
24" flat maximum shrink film width.
Unique heavy duty specially profiled sealing jaw for consistently strong seals.
Teflon coated sealing blade.
Top and bottom powered film unwind.
Easy to use and maintain.
Shrink Tunnel Features:
Heavy duty welded steel frame with adjustable height.
Wheels and height adjustable legs for transport and positioning.
Insulated shrink tunnel chamber.
Stainless steel heating elements for long life.
Shrink tunnel opening is 24"W X 16"H.
Adjustable conveyor speed.
Adjustable temperature control.
Dual blower design with adjustable air flow
Durable and non-stick teflon mesh conveyor belt
Tunnel discharge cooling station for fast film curing
Discharging idle roller conveyor for accumulation and easy transportation
