Quick Details
Description

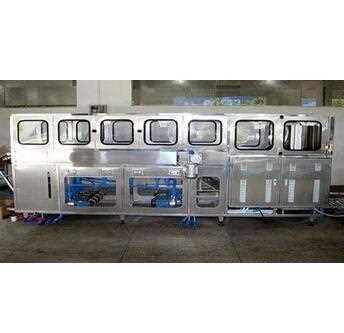

- Type: Capping Machine, washing filling capping machine
- Condition: New
- Application: Beverage, water
- Driven Type: Pneumatic
- Automatic Grade: Automatic
- Voltage: 220v
- Power: 1750
- Packaging Type: export wooden case
- Packaging Material: Plastic
- Place of Origin: China (Mainland)
- Brand Name: Kinglife
- Model Number: XG-J/100(200BPH)
- Dimension(L*W*H): 2950 x 780 x 1520mm
- Weight: 600kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
- Material: SUS304
- Bottle value: 5 gallon
- processing speed: 200 BPH
- Cylinder system: 50*50 x 2, 50*525 x 1 Taiwan Airtac
- Number of rows for washing: 4 rows (each row 2 bottle carrier)
- Number of rinsing pump: 4 sets of Lingxiao pump BLC505
|
ITEMS
|
Model
|
XG-100/J(200BPH)
|
|
Washing part
|
Number of bottle carrier / nozzles
|
2 bottle carrier,8 sets spraying nozzles
|
|
Number of rows for washing
|
4 rows (each row 2 bottle carrier)
|
|
Number of rinsing pump
|
4 sets of Lingxiao pump BLC505
|
|
Rinsing stations 1st to 2ed row
|
Detergent washing
|
|
Rinsing station 3rd row
|
Clean water washing
|
|
Rinsing station of the 4th row
|
Ozone water washing
|
|
Filling part
|
Number of filling pump
|
2 sets of Lingxiao BLC755
|
|
Filling nozzle system
|
2 sets of SS304 type
|
|
Cylinder system
|
50*50 x 2, 50*525 x 1 Taiwan Airtac
|
|
Pressure valves
|
3 sets of 4V210-08 Taiwan Airtac
|
|
Filters rugulators lubricators
|
AW-2000 Taiwan Airtac
|
|
Pressure sensitive switch
|
YSNS-C110 Taiwan Airtac
|
|
Capping part
|
Automatic caps tank/caps chute
|
100pcs caps tank (manual caps dosing)
|
|
Numbers of the capping chuck
|
2 sets of sticking type
|
|
Controlling unit
|
PLC system
|
DVP-32ES Taiwan Zhongda
|
|
Signal relay system
|
16 sets of MY2NJ-220AC Japan Omron
|
|
SS304 electric-magnatic valve
|
ZCS-15L 12 pcs, ZCS-25L 2 pcs
|
|
AC contactors
|
9 sets of GMC-9 LG
|
|
Electric-creapage switch
|
C45N-32/4p France Merin gerin
|
|
Speed gear motor
|
2 sets of 0.75Kw pearl river motor
|
|
Fuse jacket
|
19 sets of RT-18-32 Shanghai APT
|
|
Dimension
|
Machine size
|
2950 x 780 x 1520mm
|
|
Weight
|
Gross weight
|
335kgs
|
PLC time controlled system by detergent cleaning,clean water cleaning,pure water cleaning Ozone water clean,the cleaning system is by pump controlled cleaning tank and the ejecting nozzles system on the bottle carrier system.2 bottles bottle carrier to the rinsing and filling mahcine,
After the inner bottle cleaning system, the bottles will come out of the bottle carrier by the automatic reverse turn-over system and being conveyed to the filling nozzles for filling.filling nozzles will be connected to each filling piping system by the filling water pump control.
Developing from our honorable parent company of Shenzhen Angel Drinking Water Equipment Co., Ltd., Shenzhen Kinglife Environmental Technology Co., Ltd. is engaged in the R&D, manufacture and marketing of ultra-filtration (UF) / reverse osmosis (RO) water filters and water purifiers.
Corporate History & Honors:
2001 - Shenzhen Kinglife Environmental Technology Co., Ltd. was founded.
2002 - Our ultrafiltration water filters were launched into the market.
2003 - Our reverse osmosis water purifiers were launched into the market.
2004 - We were invited to join Water Quality Association.
2004 - Our ultrafiltration water filters were awarded "Top Ten Brand in China" and "Environmental Protection Products".
2005 - Our filter products were notarized and awarded "Top Ten Quality Brands of Filter Products in China".
2005 - Our KDF filters were successfully patented and later were awarded "National Technology Invention Award" and "National Science and Technology Progress Award".
2005 - We were awarded "Asia Pacific (International) Environmental Protection Scientific and Technological Innovation Award" and became an honorable member of Asia Pacific Environmental Protection Association.
2008 - Our products were awarded "China Well-Known Brand".
With the support of our parent company, we also provide the following products and services:
1. Design, installation and training of reverse osmosis / ultrafiltration water treatment equipment with production capacity ranging from 300L/H to 100,000L/H
2. Design, installation and training of full sets of 0.25L to 6L small bottle mineral / pure water bottling lines
3. Design, installation and training of full sets of linear / monoblock type semi-automatic and fully automatic equipment with production capacity up to 34,000BPH (bottle per hour)
4. Design, installation and training of full sets of 3/5/6 gallon semi-automatic and fully automatic water filling & packaging production lines with production capacity from 30BPH to 1,200BPH
5. Design, installation and training of full sets of juice / carbonated drink filling & packaging production lines
6. Design, installation and training of 0.05 cubic meters/hour to 20 cubic meters/hour sea water desalination equipment for villas, boats and small islands.
7. Automatic water vending machines for dormitories, schools and living area
8. Water dispensers / coolers for families or offices
