Quick Details
Description

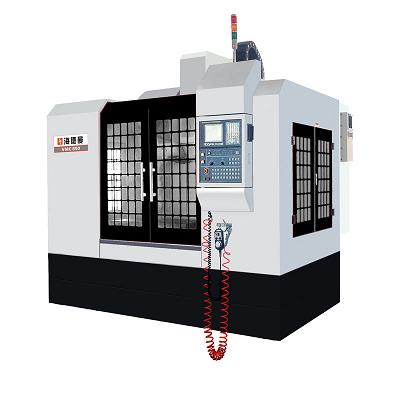

VMC850
1. High quality spindle and lead screw ensure the precision and performance of the machine.
2. Three axis precision are tested by laser interferometer, to ensure the positioning accuracy and repeatability accuracy.
3. Z axis adopt counterbalance and balance cylinder, to ensure the dynamic balance of spindle box up and down.
4. Telescopic protective cover can prevent contamination internal structure
5. Quenched and pre-load lead screw directly connect to servo motor improve the reliability and precision.
6. Pneumatic clamping makes swift change of tools.
7. Auto integration lubricate reduce the maintenance of machine.、
Parameter
|
|
|
VMC540
|
VMC850
|
|
item
|
unit
|
parameter
|
parameter
|
|
bed dimension
|
mm
|
620×380
|
500×1050
|
|
bed traverse (x axis)
|
mm
|
500
|
800
|
|
bed traverse (Y axis)
|
mm
|
400
|
500
|
|
bed traverse( Z axis)
|
mm
|
500
|
550
|
|
guide way type
|
|
box guide way
|
box guide way
|
|
distance between bed and spindle
|
mm
|
50～500
|
105～655
|
|
distance between spindle center to column guide way
|
mm
|
460
|
550
|
|
spindle speed range
|
rpm
|
50～8000
|
50～8000
|
|
spindle motor
|
KW
|
3.7/5.5
|
7.5/11
|
|
shank type
|
|
BT30/BT40
|
BT40
|
|
electric content
|
KVA
|
12
|
18
|
|
main machine weight
|
Kg
|
3450
|
5500
|
|
size (length x width x height)
|
mm
|
2000×1900×2700
|
2710×2140×2800
|
Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.
Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.
Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
