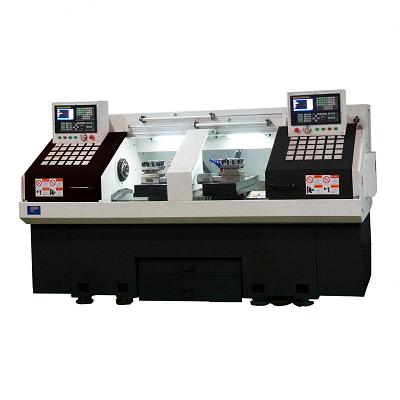

HTD300/HTD360 Double spindle CNC lathe
1. Double spindles, double turrets, more likely two CNC lathe machine. High cost-effective.
2. Seat and bed is integrate, high rigidity and shock resistance.
3. Imported guideway, fast travel and shock resistance.
4. Spindle driven by frequency conversion motor, strong turning ability, large rolling speed range.
5. Center chip convey, convenient and reliable.
Please contact us:zhuxiaochen124@126.com
Quick Details
Description
HTD300/HTD360 Double spindle CNC lathe
1. Double spindles, double turrets, more likely two CNC lathe machine. High cost-effective.
2. Seat and bed is integrate, high rigidity and shock resistance.
3. Imported guideway, fast travel and shock resistance.
4. Spindle driven by frequency conversion motor, strong turning ability, large rolling speed range.
5. Center chip convey, convenient and reliable.
6. Centralize lubrication system, convenient and reliable.
7. Ex-large coolant tank, to ensure good cooling performance.
8. Suitable for plate and axis turning.
Parameter
|
Item
|
Detail
|
Item
|
HTD300/HTD360
|
|
|
Processing ability
|
Max swing diam. over bed
|
Processing ability
|
Φ350
|
Φ380
|
|
|
Max swing diam. over slide
|
|
Φ160
|
Φ190
|
|
|
Max turning diam. (plate)
|
|
Φ300
|
Φ330
|
|
|
Max bar diam.
|
|
Φ38(manual)
|
Φ50
|
|
|
Φ34(hydraulic)
|
|
|
Spindle
|
Spindle through hole
|
Spindle
|
Φ49
|
Φ63
|
|
| |
|
Spindle nose
|
|
Φ115flange/A2-5
|
A2-6
|
|
|
Spindle speed
|
|
3000
|
2500
|
|
|
|
|
|
Clamping type
|
|
Hydraulic
|
|
|
Turret
|
Turret type
|
Turret
|
Electric turret
|
|
|
Tool cross section
|
|
20x20
|
25x25
|
|
|
Boring cutter hilt
|
|
Φ25
|
Φ32
|
|
|
X/Z axis
|
X axis/Z axis travel
|
X/Z axis
|
X270；Z250
|
|
|
X axis/Z axis rapid traverse
|
|
12000/15000
|
|
|
Motor
|
Spindle motor
|
Motor
|
4
|
5.5
|
|
|
X/Z axis servo motor torque(power)
|
|
6
|
|
|
Coolant pump
|
|
150
|
|
|
Weight
|
Net weight（approximate）
|
Weight
|
2450
|
|
|
Size
|
Length X Width X Height
|
Size
|
2980x1400x1720
|
|
Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.
Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.
Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
