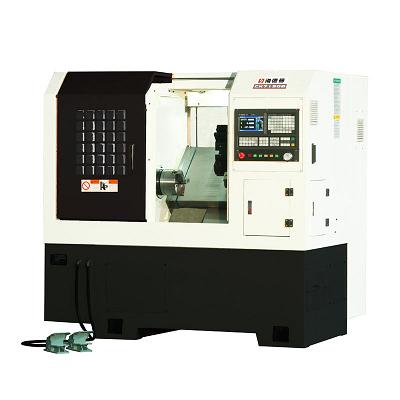

CK7130B
1. Machine inclined bed with 45°.
2. Integration design of machine bed and machine body.
3. The annealing treatment of cast-iron ensures the high rigidity and stability
4. High precision linear guideway (HIWIN) on X and Z axis ensures the consistent accuracy and long service life.
5. To adopt NSK (Japan) spindle and axis bearings to satisfy the high precision and rigidity.
6. Hydraulic power chuck and tailstock are standard configuration, which ensure the reliable clamping of long and heavy parts.
7. 8 position turret for quick machining of complex parts.
Parameter
|
Item
|
Detail
|
Unit
|
CK7130B
|
|
Processing ability
|
Bed
|
mm
|
45°
|
|
Max swing diam. over bed
|
mm
|
Φ340
|
|
Max processing length
|
mm
|
350
|
|
Max swing diam. over slide
|
mm
|
Φ200
|
|
Max bar diam.
|
mm
|
Φ36
|
|
Spindle hole
|
mm
|
Φ50
|
|
Chuck size
|
Inch
|
6"
|
|
Spindle speed（rapid）
|
rpm
|
300-3500
|
|
Main motor rate
|
kw
|
5.5
|
|
X/Z axis
|
Travel
|
mm
|
175/420
|
|
Max traverse speed（servo）
|
mm/min
|
12000/15000
|
|
Motor torque（servo）
|
Nm
|
6/6
|
|
Turret
|
Turret type
|
|
Electric turret
|
|
Tool numbers
|
|
6/8
|
|
Tool cross section
|
mm
|
25x25
|
|
Hydraulic system（standard）
|
Nominal pressure
|
Mpa
|
2.5
|
|
Content
|
L
|
60
|
|
Hydraulic oil pump rate
|
kw
|
1.5
|
|
Tailstock
|
Tailstock type
|
|
Hydraulic
|
|
Tailstock sleeve cone
|
|
MT3
|
|
Tailstock sleeve diam.
|
mm
|
Φ60
|
|
Tailstock sleeve travel
|
mm
|
50
|
|
Auto lubrication motor rate
|
w
|
5
|
|
Coolant motor rate
|
w
|
120
|
|
Other
|
X/Z axis positioning accuracy
|
mm
|
0.01/0.01
|
|
X/Z axis repeatability positioning accuracy
|
mm
|
0.004/0.004
|
|
Length X Width X Height)
|
mm
|
1800x1440x1750
|
|
Net weight
|
kg
|
2000
|
