Quick Details
Description

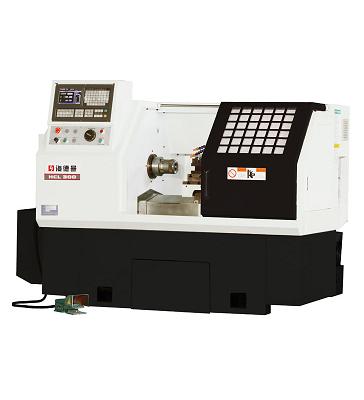

HCL300/HCL360
1. Complete and beautiful guard to guarantee the fully closed.
2. High speed linear guideway to guarantee X and Z axis travel fast and stable
3. Preloaded ball screw to ensure maximum accuracy and performance.
4. The gang type tool post, 4 position tool post and 6 position turret can be equipped optionally.
5. Excellent cooling system and modern designed coolant tank to ensure good processing
Parameter
|
Item
|
Detail
|
Unit
|
HCL300/HCL360
|
|
|
Processing ability
|
Max swing diam. over bed
|
mm
|
Φ350
|
Φ380
|
|
|
Max swing diam. over slide
|
mm
|
Φ160
|
Φ190
|
|
|
Max turning diam. (plate)
|
mm
|
Φ300
|
Φ330
|
|
|
Max bar diam.
|
mm
|
Φ38(manual)
|
Φ50
|
|
|
Φ34(hydraulic)
|
|
|
Spindle
|
Spindle through hole
|
mm
|
Φ49
|
Φ63
|
|
| |
|
Spindle nose
|
|
Φ115 flange/A2-5
|
A2-6
|
|
|
Spindle speed
|
mm
|
3000
|
2500
|
|
|
mm
|
|
|
Clamping type
|
|
manual/pneumatic/hydraulic
|
|
|
Turret
|
Turret type
|
|
Gang type
|
|
|
Tool cross section
|
mm
|
20x20
|
|
|
Boring cutter hilt
|
mm
|
25
|
|
|
X/Z axis
|
X axis/Z axis travel
|
mm
|
X300；Z350
|
|
|
X axis/Z axis rapid traverse
|
mm/min
|
12000/18000
|
|
|
Motor
|
Spindle motor
|
Kw
|
4/5.5
|
5.5
|
|
|
X/Z axis servo motor torque(power)
|
Nm(Kw)
|
6
|
|
|
Coolant pump
|
w
|
120
|
|
|
Weight
|
Net weight（approximate）
|
kg
|
1600
|
|
|
Size
|
Length X Width X Height
|
mm
|
2200x1390X1540
|
|
Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.
Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.
Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
