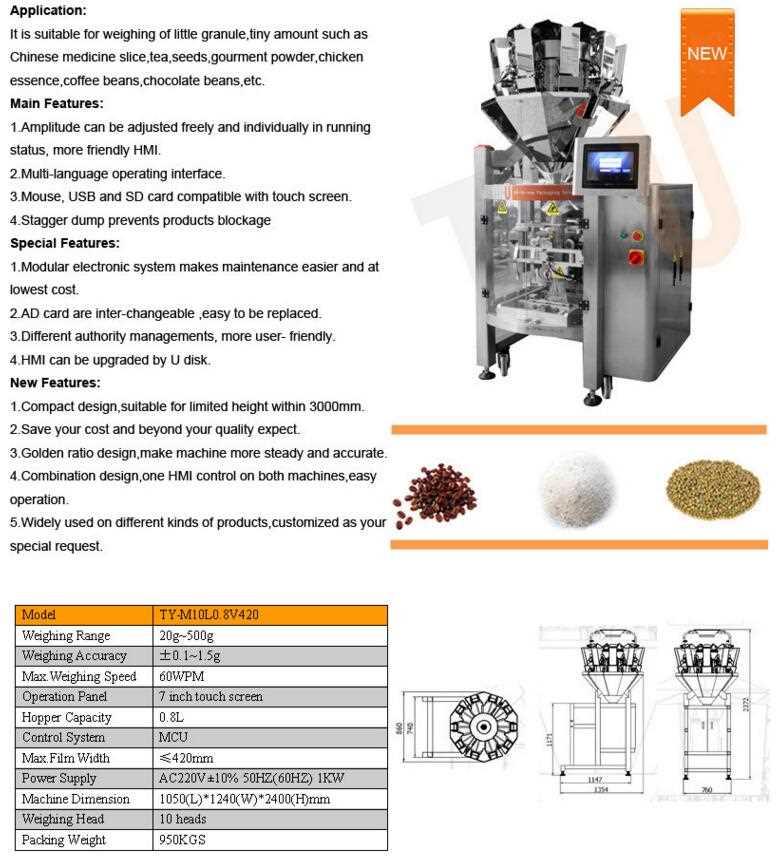

• TY-W10L0.8V420 automatic vertical pillow bag weighing and packing machine

TY-W10L0.8V420 automatic vertical pillow bag weighing and packing machine

Weighing accuracy: 0.1-1.5g; Max.weighing speed: 60bpm; Control system: MCU& PLC; weighing range: 20-500g;

Product Details

Quick Details

Description

  • Type: Multi-Function Packaging Machine, Multihead weigher with Packing Machine
  • Condition: New
  • Function: Filling
  • Application: Food, Machinery & Hardware, Medical
  • Packaging Type: Case
  • Packaging Material: Wood
  • Automatic Grade: Automatic
  • Driven Type: Electric
  • Voltage: 220V
  • Power: 1KW
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: TO-U
  • Model Number: TY-W10L0.8V420
  • Dimension(L*W*H):1050(L)*1240(W)*2400(H) mm
  • Certification: CE
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Product: 10 head automatic weighing packing machinery
  • hopper quantity: 10 heads
  • Hopper capacity: 0.8L
  • Power supply: 220V
  • Weighing accuracy: 0.1-1.5g
  • Max.weighing speed: 60bpm
  • Control system: MCU& PLC
  • weighing range: 20-500g



Type: Multi-Function Packaging Machine, Multihead weigher with Packing Machine Condition: New Function: Filling Application: Food, Machinery & Hardware, Medical Packaging Type: Case Packaging Material: Wood Automatic Grade: Automatic Driven Type: Electric Voltage: 220V Power: 1KW Place of Origin: Guangdong, China (Mainland) Brand Name: TO-U Model Number: TY-W10L0.8V420 Dimension(L*W*H): 1050(L)*1240(W)*2400(H) mm Certification: CE After-sales Service Provided: Engineers available to service machinery overseas Product: 10 head automatic weighing packing machinery hopper quantity: 10 heads Hopper capacity: 0.8L Power supply: 220V Weighing accuracy: 0.1-1.5g Max.weighing speed: 60bpm Control system: MCU& PLC weighing range: 20-500g

TY-W10L0.8V420 automatic vertical pillow bag weighing and packing machine

Company Profile

Key products of TO-U are Multihead Weigher (10 head ,12 head, 14 head,20 head, 24 head, 32 head), Linear Weigher (1 head,2 head, 4 head, 8 head)and Check Weigher. We also provide all kinds of weighing and packaging solutions for different customers according to their requirements. Recently we even developed some special multihead weighers for sticky and fresh products which are difficult to deal with by standard multihead weigher . For supermarket and fresh market, we developed 12 head Table Top Combination Weigher and 12 head Semi Automatic Belt Weigher to deal with the weighing of products with irregular shape,large piece or vulnerable surface .

All multihead weighers can be MCU or PLC controlled, harmonized with all kind of food packaging machines. Accuracy up to 0.1-2g, speed up to 130 WPM.

In control system, compare with other suppliers, TO-U has two significant achievements:

1. Modular electronic system (for both MCU and PLC weigher);
2. PLC control system (the only supplier using PLC in weigher control system in China).

Advantages of the two achievements:
As 90% of our products are exported, this unique design is end-user and distributor caring. It reduces distributor maintenance cost and maximizes uptime of food packaging line in end-user factory.
