Quick Details
Description

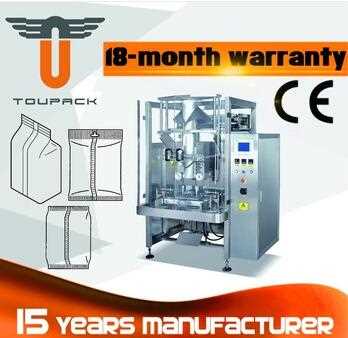

- Type: Packaging Line
- Condition: New
- Application: Food, Machinery & Hardware, Medical
- Packaging Type: Case
- Packaging Material: Wood
- Automatic Grade: Automatic
- Driven Type: Electric
- Voltage: 220V
- Power: 4KW
- Place of Origin: Guangdong, China (Mainland)
- Brand Name: TO-U
- Model Number: TY-V720
- Dimension(L*W*H):L1340*W1580*H1950mm
- Weight: 800kg
- Certification: CE
- After-sales Service Provided: Engineers available to service machinery overseas
1,Technical advantages
A. Double servo motors for film drawing down system;
B. Automatic film rectifying deviation function;
C. Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
D. Compatible with different internal and external measuring device;
E. Adopt clip & supporting without broken bags & reduce waste.
2,Optional Device
Filling nitrogen device, gusseted device, punching jaws, chain bags device, PE fillm device,venting device.
3,Application
It’s suitable to use in packing the high accuracy and easy fragile material , such as : Potato Chips ,crispy rice , Snacks , candy , pistachio , sugar , apple slices , dumpling , chocolate , pet food , small wares etc.
4,Specifications
|
Items
|
Content
|
|
Packing speed
|
5-50 bags / min
|
|
Bag size
|
(W)115-300mm (L)100-470mm
|
|
Bag making mode
|
Pillow bag, Gusseted bag, Punching bag,Vacuum bag
|
|
The maximum width of packing film
|
720mm
|
|
Thickness of film
|
0.04-0.09mm
|
|
Air consumption
|
0.25m3/Min 0.8Pa
|
|
Main power/voltage
|
4KW/220V 50-60Hz
|
|
Dimension
|
L1340×W1580×H1950mm
|
|
The weight of machine
|
800kg
|
Key products of TO-U are Multihead Weigher (10 head ,12 head, 14 head,20 head, 24 head, 32 head), Linear Weigher (1 head,2 head, 4 head, 8 head)and Check Weigher. We also provide all kinds of weighing and packaging solutions for different customers according to their requirements. Recently we even developed some special multihead weighers for sticky and fresh products which are difficult to deal with by standard multihead weigher . For supermarket and fresh market, we developed 12 head Table Top Combination Weigher and 12 head Semi Automatic Belt Weigher to deal with the weighing of products with irregular shape,large piece or vulnerable surface .
All multihead weighers can be MCU or PLC controlled, harmonized with all kind of food packaging machines. Accuracy up to 0.1-2g, speed up to 130 WPM.
In control system, compare with other suppliers, TO-U has two significant achievements:
1. Modular electronic system (for both MCU and PLC weigher);
2. PLC control system (the only supplier using PLC in weigher control system in China).
Advantages of the two achievements:
As 90% of our products are exported, this unique design is end-user and distributor caring. It reduces distributor maintenance cost and maximizes uptime of food packaging line in end-user factory.
