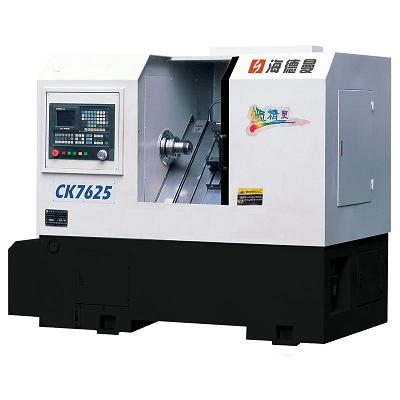

CK7625
1. Machine inclined bed with 45°.
2. Easy to load, unload workpiece, lathe keep space for manipulator, single machine automatic can be realized.
3. High quality cast iron bed, high rigidity and shock resistance.
4. High rolling speed of spindle, to realize high speed turning, increase produce efficient.
5. Frequency controlled main motor, able to realize constant linear velocity turning, to improve the surface fineness.
6. Hydraulic driven spindle clamp and angling cylinder, to increase the lathe automatic rate.
7. X, Z leadscrew is 32x10 precision ball screw, large diameter, large pitch, and leadscrew directly connect to servo motor, transmit clean and accurate.
8. The machine suit for plate, sleeve, short axis, inner and outer thread, conical and spherical batch turning.
9. Adopt entire enclosure protection, with good effect of three protections and the shape is beautiful.
Parameter
|
Item
|
Detail
|
Unit
|
CK7625
|
|
Processing ability
|
Bed
|
mm
|
45°
|
|
Max swing diam. over bed
|
mm
|
Φ250
|
|
Max processing length
|
mm
|
200
|
|
Max swing diam. over slide
|
mm
|
Φ80
|
|
Max bar diam.
|
mm
|
Φ34
|
|
Spindle hole
|
mm
|
Φ49
|
|
Chuck size
|
in
|
6"
|
|
Spindle speed（rapid）
|
rpm
|
300-3000
|
|
Main motor rate
|
kw
|
4
|
|
X/Z axis
|
Travel
|
mm
|
340/280
|
|
Max traverse speed（servo）
|
mm/min
|
8000/10000
|
|
Motor torque（servo）
|
Nm
|
6/6
|
|
Turret
|
Turret type
|
|
Gang type
|
|
Tool numbers
|
|
4-7
|
|
Tool cross section
|
mm
|
20x20
|
|
Hydraulic system（standard）
|
Nominal pressure
|
Mpa
|
2.5
|
|
Content
|
L
|
20
|
|
Hydraulic oil pump rate
|
kw
|
0.75
|
|
Tailstock
|
Tailstock type
|
|
N/A
|
|
Tailstock sleeve cone
|
|
N/A
|
|
Tailstock sleeve diam.
|
mm
|
N/A
|
|
Tailstock sleeve travel
|
mm
|
N/A
|
|
Auto lubrication motor rate
|
w
|
5
|
|
Coolant motor rate
|
w
|
120
|
|
Other
|
X/Z axis positioning accuracy
|
mm
|
±0.01/±0.01
|
|
X/Z axis repeatability positioning accuracy
|
mm
|
±0.004/±0.004
|
|
Length X Width X Height)
|
mm
|
2050x1320x1740
|
|
Net weight
|
kg
|
1850
|
Headman was founded in 1993. Our main products include high precision CNC lathe, industrial robot, economic CNC lathe, CNC milling machine, vertical machining center and special-purpose machine. Our products are well sold in all over China and more than 40 other countries all over the world. Headman is one of the largest and most famous CNC lathe manufacturers in China.
Headman’s mission is innovation, higher precision and efficiency. By excellent quality and fast service, Headman has won high reputation worldwide in the past 20 years. With continuous innovation and improvement of quality, and more 5000-set-lathe annual production capacity, Headman can offer customers the best turning solution and competition ability.
Headman has kinds of world high-end equipments from Germany, Switzerland, USA and Japan for its mass production, such as KELLENBERGER studer grinding machines, HELLER and OKUMA horizontal machining centers, MAG machining centers, WENZEL three coordinate measuring equipment, and etc. Headman’s workshops cover more than 90000 square meters, which are controlled in constant temperature (20±0.5℃ )and constant humidity (50-60%RH).
