Quick Details
Description
|
Model
|
HWS 300
|
HWS 350
|
|
Working Width
|
255mm
|
350mm
|
|
Drum Assembly
|
Changeable
|
Changeable
|
|
Power Option
|
20hp or 11kw electromotor
|
38hp or 15kw electromotor
|
|
Working Depth
|
10mm
|
15mm
|
|
Drum Rotation
|
upcut(counterclockwise)
|
upcut(counterclockwise)
|
|
Weight
|
390KG
|
650KG
|
|
Working Efficiency
|
200m²/h
|
300m²/h
|
|
Depth Control
|
Yes
|
Yes
|
|
Num of Cutter Shafts
|
4
|
6
|
|
Dimensions(L*W*H)
|
1020*670*1200 mm
|
1140*1020*1380 mm
|
|
Pack Dimensions(L*W*H)
|
1250*800*1300 mm
|
1460*1150*1410 mm
|
|
Power Drive
|
Self-Propelled
|
Self-Propelled
|
|
Engage/Disengage Drum lever
|
Electric, Hydraulic
|
Electric, Hydraulic
|

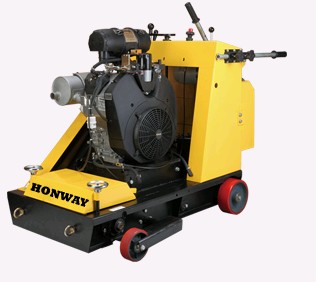

Concrete Scarifier (Concrete Planer) is a practical tool for roughening, scarifying, texturing and planning concrete, asphalt, and epoxy resin floor. It is excellent for removing traffic line, road marking and thermoplastics, adhesives and coating, therefore it has lots of applications: concrete and asphalt on high-speed roadway, airport runway, civil construction, floor preparation. Honway has a series of scarifying machine, which should be chosen according to size of concrete slab, the depth of planning, and etc.

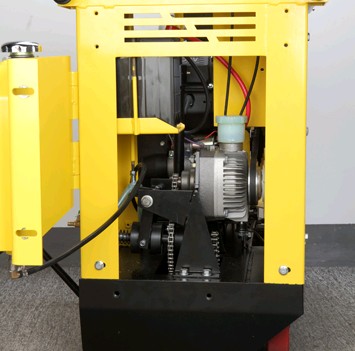

Working principle of Self Propelled Concrete Scarifier(Concrete Planer): Unlike push model, the drum of self propelled planer rotates in a counter-clockwise (not forward), so the machine needs hydraulic motor to push it forward. HWS350 also have the hydraulic power unit to lift and down the drum. With hydraulic transmission system, the operation becomes easy and comfortable
Performance of Concrete Scarifier
1, Working width: 300mm, 350mm;
2, Working depth: 10mm, 15mm;
3, Hydrostatic transmission: American EATON with;orward and reverse drive provides smooth speed changes;
4, American BUCHER electric hydraulic power unit liftand down the drum. (Especial for HWS 350);
5, With depth instructions scale dial, milling depthcan be accurately adjusted.
6, SKF high strengthened bearing and casting drum assembly.
Ideal for Concrete Scarifier
1, Creating non slip surface;
2, Removing the even part on concrete and asphalt, roadway, industrial plants, bridges as well as epoxy resin;
3 Cleaning coating, dirt, oil and traffic line, marks etc;
4, Scarifying floor surface, for cohere the old layer with the new one.
Changsha WIPIN Machinery Co., LTD., located in Changsha Human,covering 8000 square meters, is a high-tech cooperation specializing in the manufacturing of light construction equipments such as small road Scarifier, tamping rammer, plate compactor, floor grinder, concrete scabbler, road roller and so on.
As one of earliest and professional small road scarifier supplier, WINPIN machinery has nearly possessed 10 years of research and manufacture. A series of scarifier is available for surface preparation of beam, highway pavement, highway, airport runway, floors. Our aim is to help clients to reduce the cost of construction and at same time, improve work efficiency. Our slogan is regard customer as the center, thinking for customers.
WINPIN machinery is based on technical support of Hunan University, regards quality and innovation as company main task. We already have ten patented independent intellectual property rights. In 2006, we passed ISO9001, 2000, in 2009,we got CE certification authorized by Germany Rhine Company. Complete production facilities, perfect quality controlling system, modern standard workshops, together with advanced processing equipments guarantee the qualified products.
