Quick Details
Description
|
Model
|
HWK-1A
|
HWK-2A
|
HWK-3A
|
|
Weight
|
2.1KG
|
3.2KG
|
5.2KG
|
|
Work Width
|
31mm
|
69mm
|
100mm
|
|
Work Depth
|
1-3mm
|
1-3mm
|
1-3mm
|
|
Blows/min
|
2560﹡1
|
2560﹡2
|
2560﹡3
|
|
Air Capacity
|
500L/min
|
700L/min
|
900L/min
|
|
Noise
|
56dB
|
56dB
|
56dB
|
|
Boot Vibrate
|
0.96㎡/sec
|
0.96㎡/sec
|
0.96㎡/sec
|
|
Air Pressure
|
5kg/c㎡, 0.8?/min
|
5kg/c㎡, 0.8?/min
|
5kg/c㎡, 0.8?/min
|
|
Concrete
|
Work Efficiency
|
Work Efficiency
|
Work Efficiency
|
|
C50
|
2-3.5 ?/ h
|
4-5.5 ?/ h
|
6-7.5 ?/ h
|
|
C40
|
3.5-4 ?/ h
|
5-6 ?/ h
|
6-8 ?/ h
|
|
C30
|
5-6 ?/ h
|
6-8 ?/ h
|
8-10 ?/ h
|

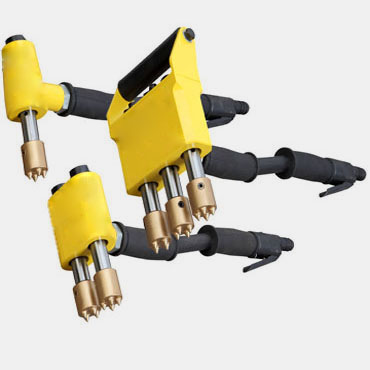

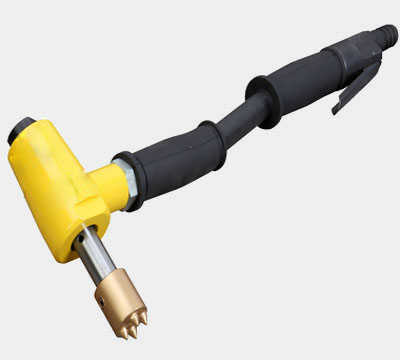

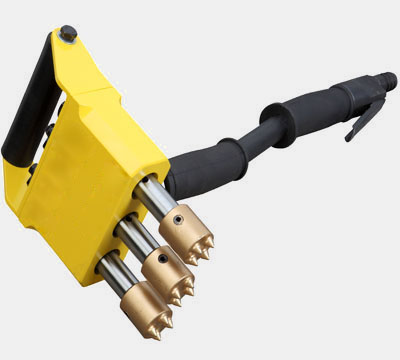

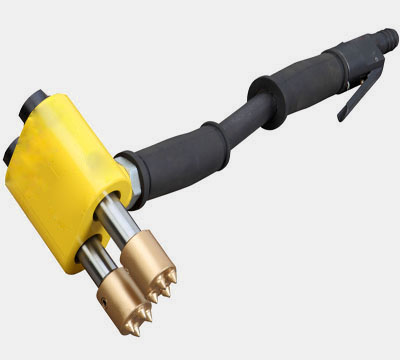

Hand scabbler is a handle tool for scarper and chip the concrete layer of the construction such as ceiling, wall, curved surface, floor, etc. light, so it is perfect for small area. Unlike other devices of surface preparation, hand scabbler doesn’t damage the surface.
Working Principle: Hand scabbler works by air power (0.8m3 to 1.0m3 is enough). Air push the piston move up and down randomly, in this way, piston push the tungsten carbide head to strike surface.
Perfomance of Hand scabbler
1, Vibration is light, less harm to operator;
2, Piston is special made, long life and strong to strike concrete;
3, Tungsten carbide heads, more durable;
4, Nylon brusher weeps out dust, in case to enter piston;
5, Unique screw cap, easy to replace piston;
Ideal for Hand scabbler
1, Scabbling concrete;
2, Coating removal;
3, Reinforce concrete;
4, Spike for new coating layer
