Quick Details
Description
Working Width
|
280mm
|
440mm
|
Head No
|
7 nos
|
11 nos
|
Frequency
|
2380times/minute
|
2200times/minute
|
Piston Length
|
185mm
|
185mm
|
Piston Stroke
|
42.5mm
|
42.5mm
|
Air Consume
|
2.4 m/min
|
3.0 m/min
|
Air Pressure
|
0.7Mpa
|
0.7Mpa
|
Weight
|
92KG
|
150KG
|
L*W*H
|
1250*300*320mm
|
1260*440*320mm
|

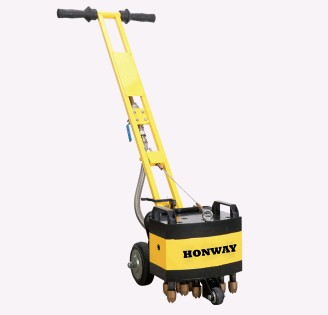

Floor scabbling machine, with Tungsten carbide tipped bush hammer heads, impacts the concrete, under the high speed piston movement is proved to be a good choice of roughening concrete before pouring the new layer.
Ideal for:
Scabble concrete;
Coating removal;
Reinforce concrete;
Spike for new coating layer
Features:
Air powered
It is powered by air, power source available;
Light vibration
Vibration is light, less harm to operator;
TCT heads
Tungsten carbide heads, more durable;
Unique screw cap
Unique screw cap, easy to replace piston
Changsha WIPIN Machinery Co., LTD., located in Changsha Human,covering 8000 square meters, is a high-tech cooperation specializing in the manufacturing of light construction equipments such as small road Scarifier, tamping rammer, plate compactor, floor grinder, concrete scabbler, road roller and so on.
As one of earliest and professional small road scarifier supplier, WINPIN machinery has nearly possessed 10 years of research and manufacture. A series of scarifier is available for surface preparation of beam, highway pavement, highway, airport runway, floors. Our aim is to help clients to reduce the cost of construction and at same time, improve work efficiency. Our slogan is regard customer as the center, thinking for customers.
WINPIN machinery is based on technical support of Hunan University, regards quality and innovation as company main task. We already have ten patented independent intellectual property rights. In 2006, we passed ISO9001, 2000, in 2009,we got CE certification authorized by Germany Rhine Company. Complete production facilities, perfect quality controlling system, modern standard workshops, together with advanced processing equipments guarantee the qualified products.
