Quick Details
Description
|
Model
|
HWS190
|
HWS200
|
HWS250
|
|
Working Width
|
190mm
|
200mm
|
250mm
|
|
Drum Assembly
|
Changeable
|
Changeable
|
Changeable
|
|
Power Option
|
Petrol 7hp or 3kw
electromotor
|
Petrol 9hp or 5.5kw electromotor
|
Petrol 13hp or 7.5kw electromotor
|
|
Working Depth
|
3mm
|
6mm
|
8mm
|
|
Drum Rotation
|
Down cut(clockwise)
|
Down cut(clockwise)
|
Down cut(clockwise)
|
|
Weight
|
65KG
|
107KG
|
145KG
|
|
Working Efficiency
|
70m²/h
|
120m²/h
|
160m²/h
|
|
Depth Control
|
Yes
|
Yes
|
Yes
|
|
Num of Shaft
|
4
|
6
|
6
|
|
L*W*H
|
1000*510*970 mm
|
1050*540*1030 mm
|
1080*650*1030 mm
|
|
Power Drive
|
Manual
|
Manual
|
Manual
|
|
Walking
|
Manual
|
Manual
|
Manual
|

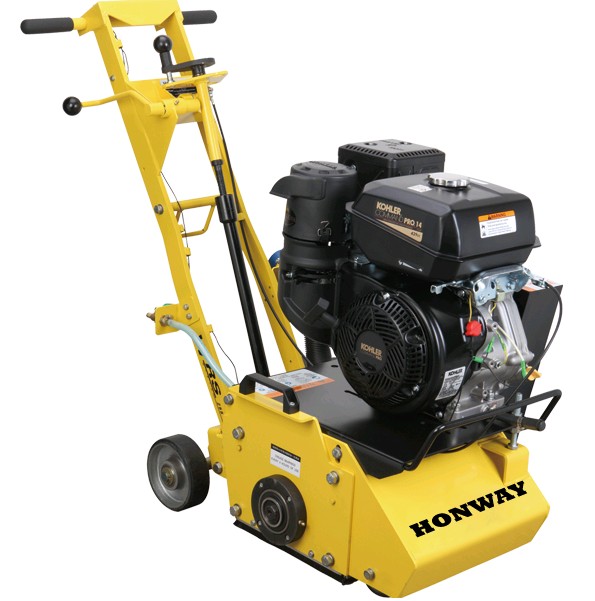

Concrete Scarifier(Concrete Planer) is a practical tool for roughening, scarifying, texturing and planning concrete, asphalt, and epoxy resin floor. It is excellent for removing traffic line, road marking and thermoplastics, adhesives and coating; therefore it has lots of applications: concrete and asphalt on high-speed roadway, airport runway, civil construction, floor preparation. Honway has a series of scarifying machine, which should be chosen according to size of concrete slab, the depth of planning, and etc.

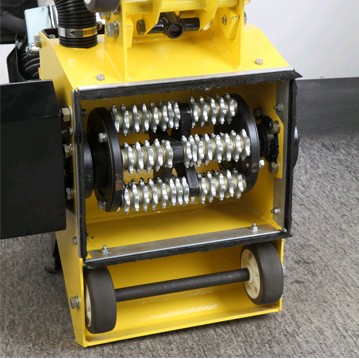

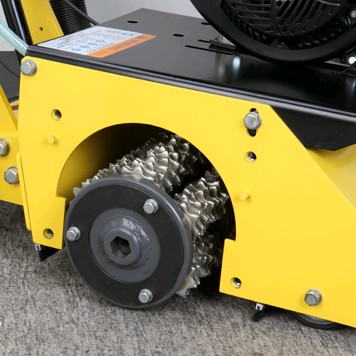

Working principle of Push Model Concrete Scarifier(Concrete Planer): The drum with TCT cutters rotates forward in very high speed; which swings the group of cutters crash the floor, therefore the carbide tungsten tips on the cutters mill, plan, scarifying concrete, asphalt, and epoxy resin on the floor surface.
Performance of Concrete Scarifier
1,Working widh: 200mm, 250mm;
2, Working depth: 3mm, 5mm, 7mm;
3, Original gasoline engine: Honda, Kholer, B&S;
4, With depth instructions scale dial, milling depth can be accurately adjusted;
5, SKF ball bearing and casting bearing assembly;
6, Vacuum and water outlet for dust free operation.
Ideal for Concrete Scarifier
1, Removing traffic line and coatings;
2, Small, narrow areas or edges;
3, Sidewalk repair
4, Floor preparation or cleaning;
5, Creating nonslip surfaces.
Changsha WIPIN Machinery Co., LTD., located in Changsha Human,covering 8000 square meters, is a high-tech cooperation specializing in the manufacturing of light construction equipments such as small road Scarifier, tamping rammer, plate compactor, floor grinder, concrete scabbler, road roller and so on.
As one of earliest and professional small road scarifier supplier, WINPIN machinery has nearly possessed 10 years of research and manufacture. A series of scarifier is available for surface preparation of beam, highway pavement, highway, airport runway, floors. Our aim is to help clients to reduce the cost of construction and at same time, improve work efficiency. Our slogan is regard customer as the center, thinking for customers.
WINPIN machinery is based on technical support of Hunan University, regards quality and innovation as company main task. We already have ten patented independent intellectual property rights. In 2006, we passed ISO9001, 2000, in 2009,we got CE certification authorized by Germany Rhine Company. Complete production facilities, perfect quality controlling system, modern standard workshops, together with advanced processing equipments guarantee the qualified products.
