Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: Gemway
- Model Number: SLT6-3.2
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 7.5kw, AC power
- Rated Loading Capacity: 6000kg
- Min. Lifting Height: 650mm
- Max. Lifting Height: 3200mm
- Table Size: 2500*5500mm
- Overall Dimensions: 3200*6000*650mm
- Weight: 4200kg
- Certification: CE / ISO 9001
- Warranty: 12 Months after recept
- After-sales Service Provided: Engineers available to service machinery overseas

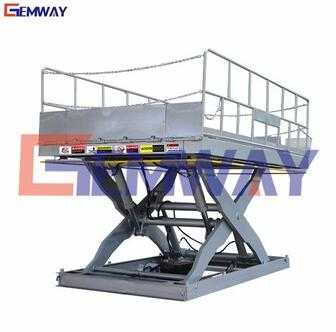

- Product name: Outdoor scissor lift platform
- Control mode: Control panel and control box
- Loading Lips: easy loading and unloading
- Safety trip bar: under platform to prevent accident
- Material: spray plastic and shoot balsting
- Checkered Steel Plate: antiskid
- Guardrail: ensure safety
- Pump station tank: Pump station and control box
- Voltage: 220v/380v/415v
Mechanical scissor lift is used to convey the goods or material from ground to upper floors, it can installed in the pit, do not occupy space. In additin, for this scissor car lift, many customers use it in production line or docks,so it canbe fixeddirectly on ground floor.
Fixed scissor lift table performs dependably in a variety of demanding storage and logistics applications. Loading&unloading goods in and out warehouses, lifting up and down between floors freely, which help customers save much labour and time.
|
Model
|
Load capacity
|
Lifting height
|
Platform size
|
Guide Rail
|
|
SLT1-1.5
|
1000kg
|
1500mm
|
1500*2000mm
|
No
|
|
SLT1-2
|
1000kg
|
2000mm
|
2000*3000mm
|
No
|
|
SLT2-3.5
|
2000kg
|
3500mm
|
2000*2500mm
|
Yes
|
|
SLT3-3.5
|
3000kg
|
3500mm
|
3000*4000mm
|
Yes
|
|
SLT6-2.5
|
6000kg
|
2500mm
|
1900*35000mm
|
Yes
|
