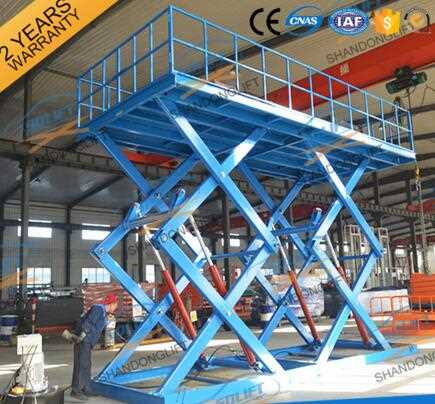

Quick Details
Description
- Design: Scissor
- Type: Double Cylinder Hydraulic Lift
- Certification: CE
- Lifting Capacity: 3000kg
- Lifting Height(mm): 5000mm
- Overall Width(mm): 2800mm
- Place of Origin: Shandong, China (Mainland)
- Brand Name: SDLIFT
- Model Number: SJG3-5
- Warranty: 24 Months
- power: 110v,220v,240v,380v or other
- install: on ground or in a pit
- Keywords: hydraulic scissor car lift
- Color&Size: optional
- Motor: customer required brand or Chinese famous brand
- Safety device: explosion proof lock valve, emergency
- Package: Iron case or plywood case package
- Grade: First class
- Platform: Anti skid
- Application: Scissor Lift Car Lift Garage Lift
Application:
- The car lift platform can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor.
- Operation is easy. There are 2 sets control system installed on the car lift platform, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform.
The frequent models we supplied for our clients:
|
MODEL
|
LOAD CAPACITY
|
PLATFORM SIZE
|
LIFT HEIGHT
|
PIT DEPTH
|
POWER
|
|
SJG2.5-3
|
2.5T
|
5.2m x 2.6m
|
3m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG2-6.5
|
2T
|
5.2m x 2.8m
|
6.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-3.5
|
2.5T
|
5.2m x 2.6m
|
3.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG2.5-5
|
2.5T
|
5.6m x 3m
|
5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG3-2.5
|
3T
|
5m x 2.3m
|
2.5m
|
750mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3
|
3T
|
5.2m x 2.6m
|
3m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG3-3.5
|
3T
|
5.6m x 2.7m
|
3.5m
|
800mm
|
220V, 240V, 380V or 400V
|
|
SJG5-10
|
5T
|
4.5m x 2.5m
|
10m
|
1150mm
|
220V, 240V, 380V or 400V
|
|
SJG8-2.5
|
8T
|
6.5m x 4.5m
|
2.5m
|
850mm
|
220V, 240V, 380V or 400V
|
|
SJG12-3
|
12T
|
5.5m x 2.8m
|
3m
|
950mm
|
220V, 240V, 380V or 400V
|
|
SJG15-4.5
|
15T
|
8m x 2.2m
|
4.5m
|
1150mm
|
220V, 240V, 380V or 400V
|
|
SJG20-5
|
20T
|
6m x 3m
|
5m
|
1200mm
|
220V, 240V, 380V or 400V
|
|
The car lift platform can be customized as your detailed size.
|
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or as your request.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation.The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
