Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: SDLIFT
- Model Number: SJY0.5-10
- Lift Mechanism: Scissor Lift
- Lift Drive / Actuation: Hydraulic
- Power: 3.0kw
- Rated Loading Capacity: 500kg
- Min. Lifting Height: 150mm
- Max. Lifting Height: 10000mm
- Table Size: 2100*1220mm
- Overall Dimensions: 3cbm
- Weight: 1600Kgs
- Certification: CE
- Warranty: 24 Months
- After-sales Service Provided: Engineers available to service machinery overseas
- safety device: explosion-proof lock valve
- mobile: 4 wheels
- power: electric and hyraulic
- style: scissor aerial work platform
- lift system: hydraulic system
- Application: Aerial Work
- Voltage: 110v 220v 240v 380v Optional
- Material: High Strength Manganese Steel

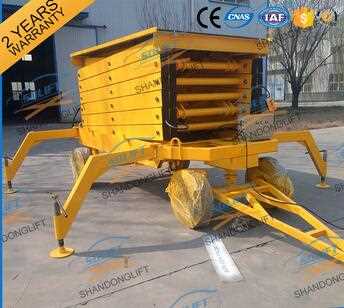

- Type: SJY Mobile Scissor Lift
- Platform: Anti-skid Checkered Plate
Application:
The aerial working platform is widely used for aerial work, decoration, street lamp maintenance and building cleaning etc.
Product List:
|
Model
|
Capacity
|
Table size
|
Max height
|
Work height
|
Total dimension
|
Net weight
|
|
SJY0.3-4
|
300Kgs
|
1500×750mm
|
4m
|
5.7m
|
1850×900×1900mm
|
400Kgs
|
|
SJY0.3-6
|
300Kgs
|
1500×750mm
|
6m
|
7.7m
|
1850×900×1970mm
|
650Kgs
|
|
SJY0.3-8
|
300Kgs
|
1650×1000mm
|
8m
|
9.7m
|
2100×1200×2460mm
|
1200Kgs
|
|
SJY0.5-8
|
500Kgs
|
1980×1220mm
|
8m
|
9.7m
|
2500×1550×2380mm
|
1400Kgs
|
|
SJY0.8-8
|
800Kgs
|
2000×1220mm
|
8m
|
9.7m
|
2600×1550×2640mm
|
1700Kgs
|
|
SJY0.3-10
|
300Kgs
|
2100×1220mm
|
10m
|
11.7m
|
2700×1550×2380mm
|
1500Kgs
|
|
SJY0.5-10
|
500Kgs
|
2100×1220mm
|
10m
|
11.7m
|
2700×1550×2380mm
|
1600Kgs
|
|
SJY1.0-10
|
1000Kgs
|
2220×1220mm
|
10m
|
11.7m
|
2820×1720×2850mm
|
2380Kgs
|
|
SIY0.3-12
|
300Kgs
|
2550×1500mm
|
12m
|
13.7m
|
3150×1860×2850mm
|
2580Kgs
|
|
SIY0.5-12
|
500Kgs
|
2550×1500mm
|
12m
|
13.7m
|
3150×1860×2850mm
|
2780Kgs
|
|
SJY1.0-12
|
1000Kgs
|
2600×1500mm
|
12m
|
13.7m
|
3200×2015×3090mm
|
3580Kgs
|
|
SJY0.3-14
|
300Kgs
|
2990×1600mm
|
14m
|
15.7m
|
3600×2000×2850mm
|
3000Kgs
|
|
SJY0.5-14
|
500Kgs
|
2990×1600mm
|
14m
|
15.7m
|
3600×2000×2850mm
|
3200Kgs
|
|
SJY0.3-16
|
300Kgs
|
3230×1600mm
|
16m
|
17.7m
|
3700×2000×3030mm
|
3900Kgs
|
|
SJY0.3-18
|
300Kgs
|
3230×1600mm
|
18m
|
19.7m
|
3700×2000×3250mm
|
4500Kgs
|
|
SJY0.3-20
|
300Kgs
|
3230×1600mm
|
20m
|
21.7m
|
3700×2000×3450mm
|
5100Kgs
|
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/3.0Kw or as your requests.
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the people above work platform.
3) The limit switch system helps the aerial working platform to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the aerial working platform are passed 1.2 times loading test before leaving factory.
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation.The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
