Quick Details
Description
- Place of Origin: Shandong, China (Mainland)
- Brand Name: SDLIFT
- Model Number: SJG3-4
- Lift Mechanism: Lift Chain
- Lift Drive / Actuation: Hydraulic
- Power: 3.0kw
- Rated Loading Capacity: 3000kgs
- Min. Lifting Height: 220mm
- Max. Lifting Height: 3m
- Table Size: 2m x 2m
- Overall Dimensions: 2.6m x 2.1m x 5m
- Weight: 2200kg
- Certification: CE ISO
- Warranty: 24 Months
- After-sales Service Provided: Overseas third-party support available

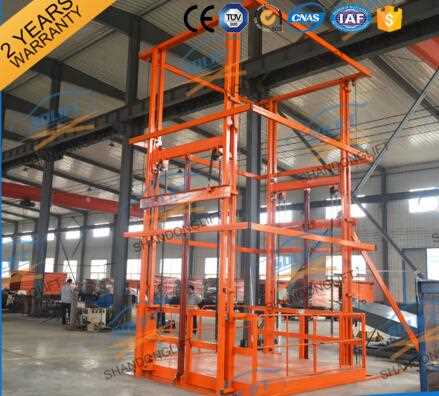

- Application: hydraulic warehouse electric cargo elevator lift
- Lift speed: 3 - 6m/min. Customized
- Stops: 1, 2, 3 or 4 floors, as request
- Lift system 1: high precision wear-resisting hydraulic cylinders
- Lift system 2: strong wire rope and chain
- Pump station: Import from Italy or China famous brand
- OEM: acceptable
- Color: red, blue, gray optional for goods lift
- Product name: hydraulic goods lift
Configuration
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/5.5Kw or others
4) High Precision Hydraulic Cylinder.
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
|
Model
|
SJG3-4
|
|
Load capacity
|
3T
|
|
Platfrom size
|
3m x 3m
|
|
Lift height
|
4m
|
|
Weight
|
2200kg
|
|
Power
|
3.0kw
|
|
The cargo elevator can be customized as your detailed size ( load capacity, platfrom size, lift height, power and other requirements).
|
Safety
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs.
2) The safety rails to guarantee safety of the goods above lift platform.
3) Equipped 4 guide rails, to ensure the cargo elevator runs more smoothly and steadily.
4) The limit switch system helps the cargo elevator to stop at accurate position.
5) Electricity leakage protection device is equipped on , all electric components are CE certified.
6) All the cargo elevator are passed 1.2 times loading test before leaving factory.
Application
The cargo elevator is widely used in indoor or outdoor of the buildings and warehouse. Used to lifting the goods or pallets between the floors.
To provide fast, efficient, convenient and safe access to mezzanines, basements, and any levels in multistoried building.
Shandong Lift Machinery Co., Ltd is one of the leading manufacturer of heavy duty scissor lifts and car parking lifts in China. Being in this field for over 59 years, and exported lift machine more than 17 years till 2017. Our main products are stationary scissor lift, mobile scissor work platform, car park lift, cargo elevator, disable wheelchair lift, aerial aluminum lift ladder, and mobile container loading ramps etc.
Now there are more than 116 staffs in our factory, and 10 production lines in 8 workshops. There is a engineer team focus on research, development and innovation.The biggest load weight of our scissor lift is 100tons. All the products are passed the test held by Check Station of China Special Equipment and Manufacture.
We regard ''reasonable prices, efficient production time and good after-sales service'' as our tenet, and hope to cooperate with more customers for mutual development and benefits. We sincerely welcome each potential customer to visit our factory!
