• Rotary stick ice cream machine

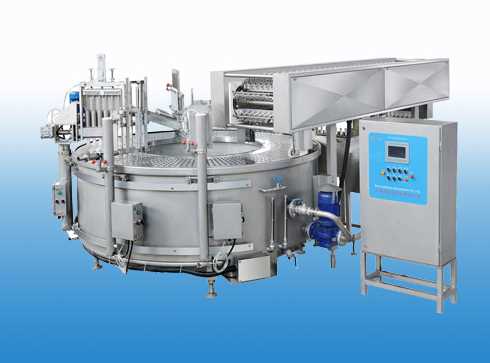

Rotary stick ice cream machine

Rotary series color ice cream machine is wholly made with stainless steel,it was jointed by double annular tanks,has a compact structure and nice appearance, and with characteristics of taking little space and easy cleaning.

Product Details

Quick Details

Description

RXFJ-6 Product Introduction


Rotary series color ice cream machine is wholly made with stainless steel,it was jointed by double annular tanks,has a compact structure and nice appearance, and with characteristics of taking little space and easy cleaning. The structure of round-tank type always keeps moulds inside brine tank,which will help to save ice cream raw materials and decrease energy using. Machine adopts compressed air dive which processes smooth and with the function of multi-point failure detfction and protection.PLC control and human-machine interface operation makes the machine to achieve high efficiency running andsuitable for large-scale and various ice cream producyion, it's the latest generation of energy conservation and environmental protection products.

Main technical parameters
No.
Parameters
Unit
Value
1
Maximum capacity
Piece/h
7200
2
Number of moulds each row
Piece
8
3
Mould Lines
Piece
140
4

Power supply

Phase/V/Hz
9803/380/50
5


Water pump motor for demould
Kw
1.5
Milk pump motor
Kw
0.75
Vacuum pump motor
Kw
2.2
Heating
Kw
10
6
Name

calcium chlorde
Flow rate
m³/h
120
7
Brine water pipeline
mm
φ90
Air pipeline
Inch
1/2
8
Cooling capacity
Kw
大约90
9
DImension
mm
4500×2700×1820
10
Weight
Ton
5





Rotary stick ice cream machine
