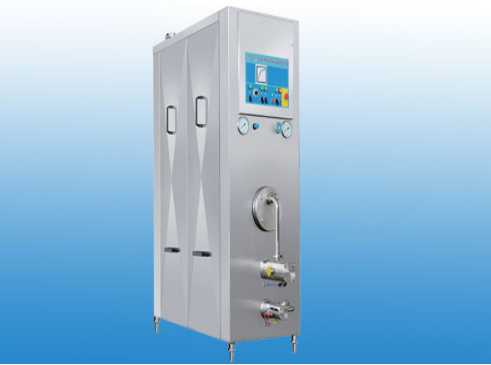

This machine can be used in both manual filling and large full auto production lines.
It is equipped with simply operated swelling modulation device, efficient and serviceable self-cleaning ice cream delivery pump, steady and reliable freezing system (which are all provided with the freezing control valves of internationally famous brand), so as to guarantee its steady and efficient production of high-quality ice creams.
Main technical parameters
Parameters
Unit
Value
1
Maximum capacity(expansion rate 100%)
L/h
1000
2
ice-cream feed temperature
℃
+2-+4
3
Discharge temperature of ice cream
≤-4
4
Power
stirrer motor
Kw
15
Feed pump motor (inverter control)
0.75
5
Refrigerant
R717
6
CoolingCapacity
Kcal/KW
27000/31
7
Compressed Air
Pressure
MPa
≥0.6
Consumption
m3/min
8
Over size
Feeding tube
mm
≥18
Conduit
≥48
Hot ammonia pipe
Emptying pipe
Pipeline safety
9
Dimensions(L×W×H)
m
1.82×0.83×2.16
10
Net Wight
Ton
1.3
