Quick Details
Description
Operational principle
Ice-cream material and proper air enter the freezing drum through the gearing pump, and Freon compressor will start refrigerating. Scraper inside freezing drum begin to mix the material and air, and stainless steel blade will scrape the frozen ice-cream on the internal wall, then ice-cream will be out through the discharge pump.
System

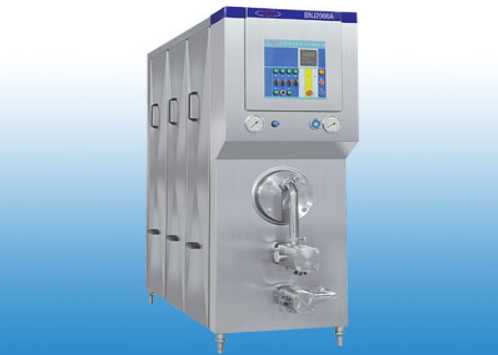

BNJ-1000 Ice-cream Freezing Machine is continuous ice-cream freezer with external cold source. And is equipped with simple bulking control system, durable self-cleaning slurry transfer pump, stable and dependable refrigeration system (all refrigeration control valves are international advanced brands). Star-moon pump and related parts are made of high quality materials. Compressed air is sent into the freezing drum by supplying forced air, qualified expansion rate can be acquired by adjusting the quantity of air supply, thereby to guarantee the quality and efficiency of ice-creams. The machine is easy for operation, and it can be conveniently assembled and unassembled for cleaning.
Application
This eries Ice-cream freezing machines are the ideal equipments for large-scale and continuously soft ice-cream production. Mixing and froze the material and air to make ice-creams, it can produce high quality ice-creams continuously and automatically, which will help reduce the cost in processing. This machine can be used in both manual filling and large-scale automatic production line.
Main technical parameters
|
NO.
|
Parameters
|
Unit
|
Value
|
|
1
|
Maximum capacity（expansion rate 100%）
|
L/h
|
2000
|
| |
Conditions: Feed temperature
|
℃
|
+2-+4
|
|
Discharge temperature
|
℃
|
≤-4
|
|
Evaporating temperature
|
℃
|
-30
|
|
Oil content
|
ppm
|
<30
|
|
2
|
Refrigerant
|
|
R717
|
|
3
|
Cooling Capacity
|
Kcal/KW
|
56000/65
|
|
4
|
Compressed Air
|
Pressure
|
MPa
|
≥0.6
|
|
Consumption
|
m3/min
|
3.5
|
|
Tube
|
mm
|
6
|
|
5
|
Piping system
(External dimensions)
|
Feeding pipe
|
mm
|
25
|
|
Discharge pipe
|
mm
|
38
|
|
Air-return conduit
|
mm
|
76
|
|
Liquid inlet pipe
|
mm
|
22
|
|
Hot ammonia pipe
|
mm
|
22
|
|
Emptying pipe
|
mm
|
22
|
|
Safety pipeline
|
mm
|
27
|
|
6
|
Power
|
Stirrer motor
|
Kw
|
22
|
|
Feed pump motor
|
Kw
|
2.2
|
|
Power standard
|
phase/V/Hz
|
3/ 400/ 50
|
|
7
|
Dimensions（L×W×H）
|
m
|
2.5×0.9×2.1
|
|
8
|
Net Wight
|
Ton
|
2.0
|
Wuxi Danxiao Machinery Co., Ltd. is one of a leading ice cream machinery manufactures in Wuxi City of China. We have more than 12 years experience of manufacturing ice cream machine and our client already expanded to worldwide.
Our products, especially ice cream extrusion line, ice cream filling machine, stick ice cream machine, ice-cream freezer etc, have won good reputation among our customers.
All our products have won CE certifictae and ISO 9001:2008 certificate.
"Wuxi Danxiao " aim is try to supply best machine with best service to client. "Danxiao" have a group of staff engaged in constant research and dedication in the ice cream industry, so we can provide a series morden, constant updated machine according market of client's requirment. We also can supply the whole solution of ice cream production.
Danxiao welcome client from all over the world and try to satisfy client's requirment by heart.
If any enquiry, please do not hesitate to tell us. We will reply you as soon as we can.
