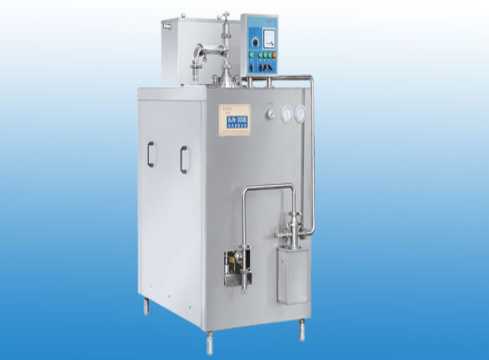

This machine is an ideal machine for large-scale and continuous production of soft ice creams in the frozen food industry. It is equipped with specifically designed steamer so as to achieve the favorable effect of freezing and the steady quality of product. Moreover, its delivery pump has the delivery speed modulated with transducer, so it is simple and reliable to operate. If appropriate delivery volume and discharge expansion valve are well adjusted, it can continuously make the high-quality soft ice creams characteristic of loose structure and delicate texture.
Main technical parameters
Parameters
Unit
Value
1
Feed temperature（No more than +4℃）
℃
+2─+4
2
Discharge temperature
-5.5
3
Maximum capacity（expansion rate 100%）
L
300
4
Cooling Capacity（+30℃/-30℃）
W
8700
5
Refrigerant
R502
6
Condensate Flow （+15℃/-+18℃，Maximum Pressure0.1Mpa）
m3/h
7
Motor capacity
Mixing pump motor
Kw
0.75kw/1390rpm
Stirring Motor scraper
3kw/960rpm
Compressor Motor
5.5kw/1450rpm
8
Dimensions（Ｌ×Ｗ×H）
mm
830×1380×1600
9
Net Wight
kg
680
