Description

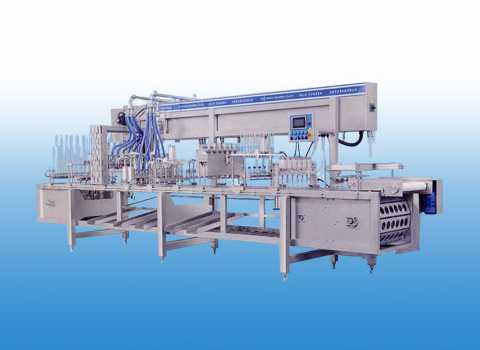

This series of ice cream filling machine is an intermittent motion, bull and filling cream multipurpose filling equipment. Mainly the production of ice cream cones, ice cream and a variety of flower garden. Flower of ice cream products. Double color, three color to perfusion of ice cream and ice cream and jam, ice cream and chocolate products, and pouring out plane cutting products. Equipment with automatic cup, cup, stamped, gland (or heat sealing cap), sending function. The equipment is controlled by a PLC computer, touch screen operation and mechanical control, simple adjustment, reliable operation, is ideal equipment for the domestic ice cream filling.
Main technical parameters
|
No.
|
Parameters
|
Units
|
BGJ-6C
|
|
1
|
Maximum capacity
|
|
13500
|
|
2
|
Weight of each piece
|
g
|
50-250
|
|
3
|
Voltage / frequency
|
Volts / Hertz
|
380/50
|
|
4
|
Total power
|
KW
|
25
|
|
5
|
Air pressure
|
MPa
|
≥0.5
|
|
6
|
Air consumption
|
m³/min
|
3-4
|
|
7
|
Dimensions (length * width * height)
|
mm
|
6500×1500×2300
|
|
8
|
Weight
|
Ton
|
2.2
|
Wuxi Danxiao Machinery Co., Ltd. is one of a leading ice cream machinery manufactures in Wuxi City of China. We have more than 12 years experience of manufacturing ice cream machine and our client already expanded to worldwide.
Our products, especially ice cream extrusion line, ice cream filling machine, stick ice cream machine, ice-cream freezer etc, have won good reputation among our customers.
All our products have won CE certifictae and ISO 9001:2008 certificate.
"Wuxi Danxiao " aim is try to supply best machine with best service to client. "Danxiao" have a group of staff engaged in constant research and dedication in the ice cream industry, so we can provide a series morden, constant updated machine according market of client's requirment. We also can supply the whole solution of ice cream production.
Danxiao welcome client from all over the world and try to satisfy client's requirment by heart.
If any enquiry, please do not hesitate to tell us. We will reply you as soon as we can.
