- Place of Origin: Hunan, China (Mainland)
- Brand Name: HNAC
- Model Number: KYN28

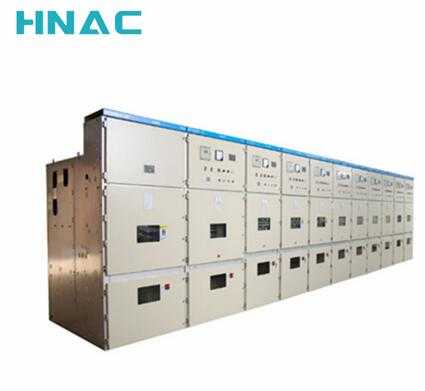

- Product Name: KYN28 Metal Clad Customized Portable Switchgear
- Rated Voltage: 11KV / 12KV /24KV /35KV
- Rated Current: 630A, 1250A , 2000A, 3000A
- Frequency: 50/60 Hz
- Altitude: not more than 2000m
- Applicable environmental temperature: -5°C-+40°C
- Shell protection grade: IP45
- Customized: Yes
- Certificate: ISO
- Application: Factory power control
Operating environment:
1)Ambient temperature: -5°C-+40°C;
2)Altitude: high voltage ≤1000M, low voltage ≤2000M (technical department will design specially if exceeds);
3)Relative humidity: ≤85%
4)Seismic intensity: ≤ magnitude 8;
5)Apply to the places have no fire,no explosion danger, no serious pollution,no chemical corrosion and no violent vibration. plc control cabinet
Technical Parameter:
35KV high voltage electrical distribution panel board technical parameter: KYN61-40.5
|
Rated voltage
|
kV
|
33~40.5KV
|
|
Rated short time power frequency withstand voltage(1min)
|
kV
|
95
|
|
Rated lighting impulse withstand voltage
|
kV
|
185
|
|
Rated current
|
A
|
1250,1600,2000
|
|
Rated short circuit breaking current
|
kA
|
25 31.5
|
|
Rated peak value withstand current
|
kA
|
63 80
|
24KV high voltage distribution panel board technical parameter: KYN28A-24
|
Rated voltage
|
kV
|
24~15KV
|
|
Rated short time power frequency withstand voltage(1min)
|
kV
|
65
|
|
Rated lighting impulse withstand voltage
|
kV
|
125
|
|
Rated current
|
A
|
630,1250,1600,2000,2500
|
|
Rated short circuit breaking current
|
kA
|
25 31.5
|
|
Rated peak value withstand current
|
kA
|
63 80
|
12KV high voltage distribution panel technical parameter: KYN28A-12 / XGN2-12 / HXGN-12
|
Rated voltage
|
kV
|
3.6 7.2 12
|
|
Rated short time power frequency withstand voltage(1min)
|
kV
|
24 32 42
|
|
Rated lighting impulse withstand voltage
|
kV
|
40 60 75
|
|
Rated current
|
A
|
630,1250,1600,2000,2500,3150,4000
|
|
Rated short circuit breaking current
|
kA
|
20, 25, 31.5, 40, 50
|
|
Rated peak value withstand current
|
kA
|
50, 63, 80, 100, 125
|
