Quick Details
Description
- Model NO.: JDZ100
- Application: Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Tea
- Forming Species: Box
- Material Type: Box
- Packaging Material: Paper
- Automatic: Full
- Transport Package: Wooden Box
- Origin: Wenzhou
- Automatic Grade: Automatic
- Type: Packing
- Driven Type: Mechanical
- Packaging: Cartons
- Function: Packing
- Trademark: GLOBAL
- Specification: 2150mm*1140mm*1800mm
- HS Code: 8422303090
Use:

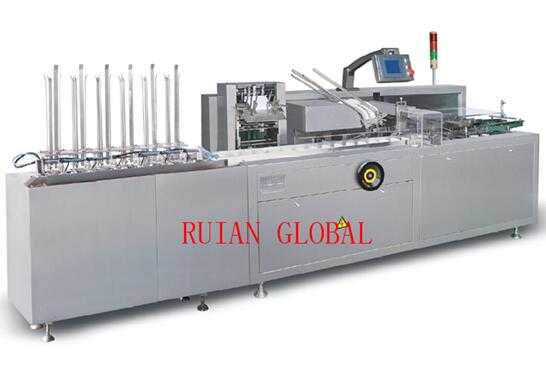

This carton packing machine can pack bottle which is round or flat, it also can pack eye drop bottle and so on.
Instruction
Fully automatic and multi-function cartoner Machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain
Feature
1 International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2 Adopt human-machine operation system
3 Automatically displaying device for trouble, speed and finished products counting.
4 Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5 No products not suction leaflet, no leaflet not suction carton .
6 Automatic detection and rejection device for lacking blister goods and leaflets.
7 Protecting automatically for overloading.
8 stable performance , operation is easy.
|
Main technical parameters
|
|
Encasing speed
|
30-120 cartons/min
|
|
Carton
|
Quality requirement
|
250-350g/m2 (base on carton size)
|
|
Dimension range (L×W×H)
|
(65-155)mm×(30-85)mm×(15-50)mm
|
|
Leaflet
|
Unfolded leaflet specification(L×W)
|
(80-250)mm×(90-170)mm
|
|
Fold range
|
(1-4) fold
|
|
Quality
|
60-70 g/m2
|
|
Compressed air
|
Working pressure
|
≥0.6mpa
|
|
Air consumption
|
120-160L/min
|
|
Power
|
220V/50Hz
|
|
Motor power
|
1.10kw
|
|
Machine dimension(L×W×H)
|
4200mm×1140mm×1550mm
|
|
Machine weight
|
1600kg
|
