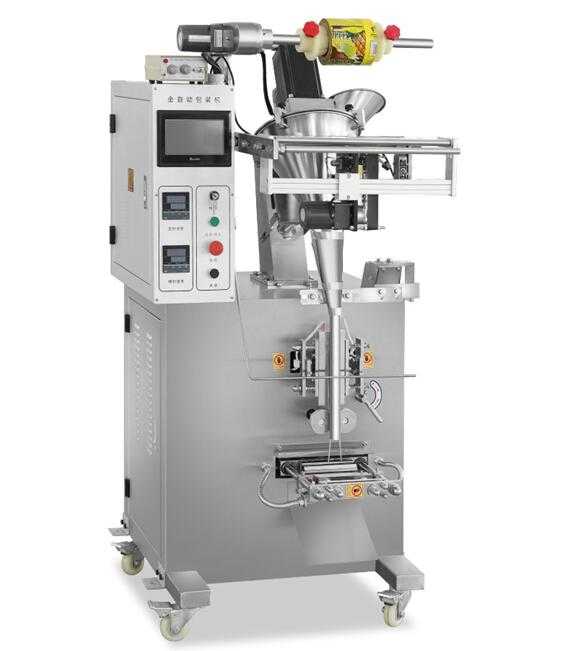

DS100P Series 5ML-100ML Automatic Powder Packing Machine
This machine is applicable for packaging the foodstuff ,pharmaceutics ,chemicals ,agricultural chemicals ,as well as the granles with little viscosity .it is applicable for packaging the food additive ,milk powder ,bean milk powder ,protein powder ,traditional Chinese medecine powder ,facial cream powder ,tea powder ,oatmeal and maizena ,etc.
Quick Details
Description
- Model NO.: DS100P
- Application: Cleaning, Detergent, Drinks, Skin Care Products, Dairy Products, Hair Care Products, Oil, Tea, Vegetable, Fruit, Fish, Meat, Snack, Rice, Flour, Seasoning
- Forming Species: Film Forming
- Driven Type: Mechanical
- Packaging: Bag
- Automatic: Automatic
- Trademark: GLOBAL
- Specification: 5ML-100ML
- HS Code: 8422301090
- Automatic Grade: Automatic
- Type: Forming Filling Sealing Machine
- Forming Function: Forming, Filling, Seal
- Material Type: Powder
- Packaging Material: Film
- Function: Packing
- Transport Package: Wooden Box
- Origin: Wenzhou
Application:
This machine is applicable for packaging the foodstuff ,pharmaceutics ,chemicals ,agricultural chemicals ,as well as the granles with little viscosity .it is applicable for packaging the food additive ,milk powder ,bean milk powder ,protein powder ,traditional Chinese medecine powder ,facial cream powder ,tea powder ,oatmeal and maizena ,etc.
Powder packing machine can use many kinds of heat sealable laminated film, such as BOPP, PET/PE, PET/Plated AL/PE etc.
Structure:
it include machine body, filling system, sealing system, heating system, hopper and control system.
Process:
Automatic detection -- automatic filling -- automatic bagging -- automatic sealing -- automatic cutting
Character:
1.This machine is a stand one .It can automatically finish counting the quantity of bags ,filling ,sealing ,slitting and counting .it can pack with the packaging materials like polytene ,BOPP film and tea filter paper .
2. This machine adopted photoelectric cells and auto constant temperature device ,stepless speed governor ,programmable controller PLC and auto counter .
3. It can automatically display the packaging speed and number of bags .
4. This machine is of simple construction ,operation and reliable running .The packaging is of stable quality and the outlook is flat and beautiful .
Parameter:
|
model
|
DS100P
|
DS500P
|
DS1000P
|
|
|
Packaging quantity
|
<100g
|
50-500g
|
100-1000g
|
|
|
speed
|
35-60pcs/min
|
15-30pcs/min
|
5-15pcs/min
|
|
|
Packaging size
|
L:40-180mm,W:30-140mm(accept customize)
|
L:50-250mm,W:50-180mm
|
L:100-280mm,W:100-180mm
|
|
|
Power supply
|
220V 50Hz (accept customized)
|
|
voltage
|
1.5kw
|
2.4kw
|
2.4kw
|
|
|
Weight
|
280kg
|
350kg
|
370kg
|
|
|
Overall measurement
|
900*800*1600mm
|
1250*830*2100mm
|
1250*830*2100mm
|
|
|
Sealing form
|
3 sides ,4 sides sealing and pillow back sealing
|
