Quick Details
Description
- Model NO.: JDZ120
- Application: Cleaning, Detergent, Cosmetics, Skin Care Products, Dairy Products, Hair Care Products, Tea
- Forming Species: Box
- Material Type: Box
- Packaging Material: Paper
- Trademark: GLOBAL
- Specification: 2150mm*1140mm*1800mm
- HS Code: 8422303090
- Automatic Grade: Automatic
- Type: Packing
- Driven Type: Mechanical
- Packaging: Cartons
- Function: Packing
- Transport Package: Wooden Box
- Origin: Wenzhou
Use:

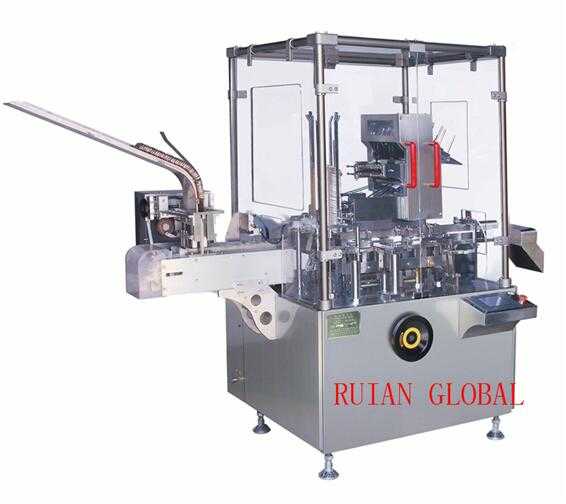

This machine pack PVC blister or aluminum PVC blister into carton.
Application:
The machine finished running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes 1to 4folds leaflet automatic folding, cantons in suction and open, products and leaflet put into, printing batch number, sealing or option hot-glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three Dimensional Packaging Machine, etc to form a production chain.
Character:
1.International famous brand of electrical component such as PLC touch screen, frequency inverters, etc.
2.Adopt human-machine operation system.
3.Automatically displaying device for trouble, speed and finished products counting.
4.Machine running without pressing if no products or incorrect position of products. And stopping automatically if incorrect position of product into carton after return or no cartons or out of leaflets continuous.
5.No products not suction leaflet, no leaflet not suction carton .
6.Automatic detection and rejection device for lacking blister goods and leaflets.
7.Protecting automatically for overloading.
8.stable performance , operation is easy .
Parameter:
|
Main technical parameters
|
|
Encasing speed
|
30-120 boxes/min
|
|
Box
|
Quality requirement
|
250-350g/m2
|
|
Dimension rangeL×W×H
|
(65-125)mm×(30-85)mm×(12-50)mm
|
|
Quality requirement
|
60-70g/m2
|
|
Leaflet
|
Unfolded leaflet specificationL×W
|
(80-250)mm×(90-170)mm
|
|
Fold range
|
(1-4) fold
|
|
Compressed air
|
Working pressure
|
≥0.6mpa
|
|
Air consumption
|
120-160L/min
|
|
Power
|
220V/50Hz
|
|
Motor power
|
0.75kw
|
|
Machine dimension(L×W×H)
|
2150mm×1140mm×1800mm
|
|
Machine weight
|
1100kg
|
Our company is a professional manufacturer of pharmaceutical, food, chemical industry equipment, our products include extraction equipment, stainless steel pressure vessel equipment, food additives and detergent fermentation system, liquid mixing system, food and chemical industry etc...
API equipment: Herb cutter, washing machine, herb grinder, extraction equipment, concentrator, purification equipment, drying equipment etc...
Packing equipment: Tube filling machine, blister packing machine, liquid packaging machine, carton packing machine, capsule filling machine etc.
Granulating equipment: Wet granulating machine, granulator, dry granulator, boiling dryer, spray dryer, vacuum drying machine, tablet pressing machine, coating machine etc...
Preparation equipment: Multi effect distilled water machine, pure water RO system, pure steam generator, liquid distribution system, CIP cleaning system and liquid packing system
Because we supply good quality machine and competitive price, we also supply good service to customer, so our machine is popular on the world, we welcome all the friends come to our company to check the machine and we warmly hope that we can do our best for you.
