1. High pure copper wire winding, power generation high efficiency and stability.
2. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.
3. Gearless, direct drive, low speed, the operation is simple, safe, and convenient to maintenance.
4. Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.

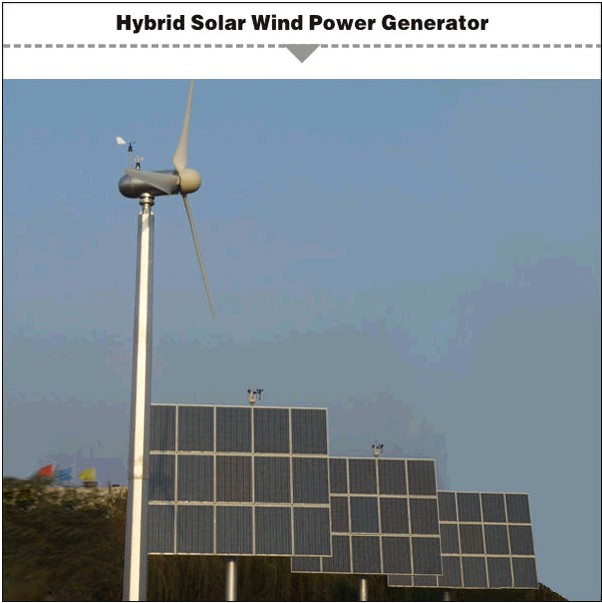

Solar & wind hybrid systems product mainly use for home ,street lights system,both of them are Economic, Green and Environmentally Friendly .
At night or rainy day, wind turbine generate wind power. In sunny day, solar panel generate solar power.
In windy and sunny day, both of them generate power.
wind turbine :3pcs or 5pcs blades optional; guy cable tower or free stand tower optional;
solar panel :mono or poly panel optional; battery capacity and quantity can be optional.
Question: What can be included for this system?
Answer: This system includes:solar panels,wind turbine(wind generator+blades+tower),wind and solar hybrid controller,inverter,battery,solar pv cable,bracket,and disconnectors.
Question: What's the advantage for this hybrid system?
Answer: 1.Steady operating.
2.The most advantage:On grid energy backup(not means sell electricity,just backup)
3.Make the utmost of nature resource of wind and sun.
4.Easy installation according to our instructions.
5.professional parts supply.
Question: How about the lifetime?
Answer: The life time for solar panel is 25years,wind turbine is 20years,another parts is from 6-15years.

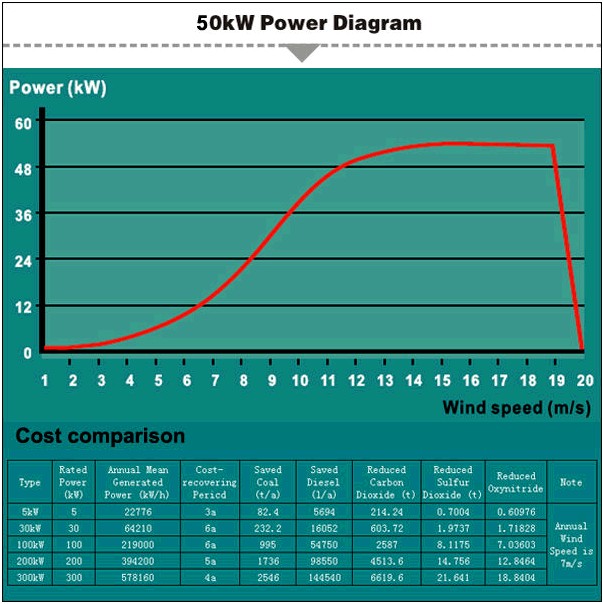

50KW Wind Generator Diagram
Technical parameters
|
Model
|
NL-50KXL
|
NL-100KXL
|
NL-200KXL
|
NL-300KXL
|
|
Rated power
|
50kW
|
100kW
|
200kW
|
300kW
|
|
Output voltage
|
400V
|
500V
|
690V
|
690V
|
|
Started wind
|
2.5m/s
|
3.0m/s
|
3.5m/s
|
3.5m/s
|
|
Rated wind
|
13.5m/s
|
12 m/s
|
12.5 m/s
|
12.5 m/s
|
|
Safety wind
|
45/m/s
|
60m/s
|
60m/s
|
60m/s
|
|
Rotor diameter
|
16.4m
|
21.7m
|
27.55m
|
33.48m
|
|
Blade length
|
8m
|
10.35m
|
13.2m
|
16m
|
|
Blade weight
|
300Kg
|
360Kg
|
500Kg
|
750Kg
|
|
Tower height
|
24m
|
30m
|
30m
|
35m
|
|
Main braking system
|
Blade pitch contrd
|
|
Second braking system
|
High speed shaft brake disc
|
|
Lightning protection system
|
IEC-61024-1
|
|
Resistance value of WTGS earth
|
4 Ω
|
|
Blade number
|
3
|
|
Blade material
|
GFRP strengthening
|
|
Generator
|
Asynchronous
|
|
Surface antisepsis
|
multi-layers paint
|
|
Control System
|
PLC with remote monitoring
|
|
Temperature
|
-40°C-80°C
|
|
Lubrication
|
Splash pressure lubrication
|

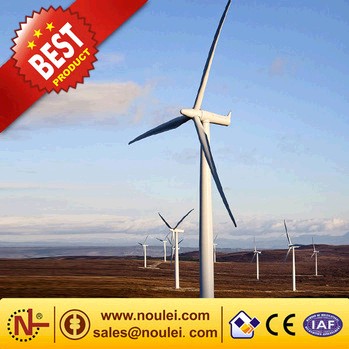

50kW Wind Turbine Generator
