Products Range: 100W~2mW
1. Dual, automatic emergency braking system.
2. Unique Anti-Vibration design.
3. Waterproofing.
4. Unique Anti-Vibration design.
5. Efficient Aero-dynamic design, Compared with the vertical shaft, power utilization rate is greatly improved.
6. High strength, corrosion resisting aluminium alloy.
7. Unique permanent magnetic material generator, Small size, light weight, power output is very high.
8. Low noise level.

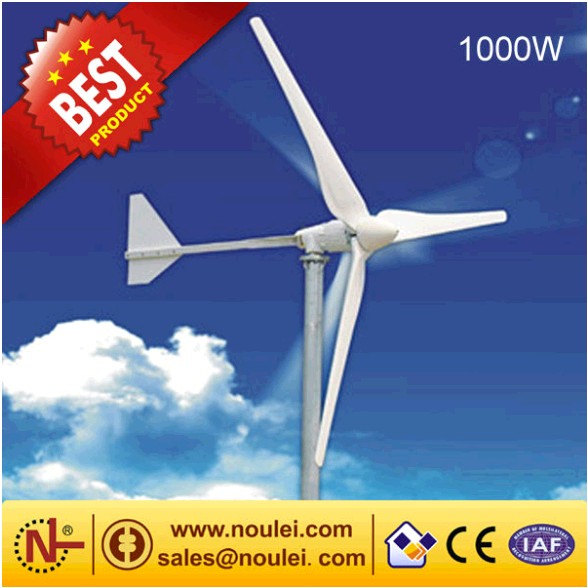

1KW Wind Turbine
Wind turbine structure
The generator is therare earth permanent magnet generator.
1. High pure copper wire winding, power generation high efficiency and stability.
2. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.
3. Gearless, direct drive, low speed, the operation is simple, safe, and convenient to maintenance.
4. Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.
Technical parameters
|
Model
|
NL-1KL
|
NL-2KL
|
NL-3KL
|
NL-5KL
|
NL-10KL
|
NL-20KL
|
|
Rated power
|
1000W
|
2000W
|
3000W
|
5000W
|
10kW
|
20kW
|
|
Maximum power
|
1500W
|
3000W
|
4800W
|
7500W
|
17kW
|
30kW
|
|
Rated power
|
48V
|
48V
|
240V
|
240V
|
500V
|
500V
|
|
Started wind
|
3.5 m/s
|
3.5 m/s
|
3.5 m/s
|
3.5 m/s
|
3.5m/s
|
3.5m/s
|
|
Rated wind
|
10 m/s
|
10 m/s
|
10 m/s
|
10 m/s
|
10 m/s
|
10 m/s
|
|
Rated revolution
|
400 r/m
|
370 r/m
|
300 r/m
|
260 r/m
|
200r/m
|
200r/m
|
|
Safety wind
|
35 m/s
|
40 m/s
|
40 m/s
|
45 m/s
|
45m/s
|
45m/s
|
|
Host net weight
|
56 kg
|
68 kg
|
135kg
|
226kg
|
420kg
|
1150kg
|
|
Size (stator H x stator φx shaft L) mm
|
185*190*139
|
200*250*155
|
220*320*180
|
285*340*266
|
320*560*420
|
520*760*560
|
|
Tower height
|
6 m
|
6 m
|
9 m
|
12 m
|
18m
|
20m
|
|
Blade number
|
3 pcs
|
|
Blade material
|
Nylon fiber /GFRP strengthening
|
|
Generator
|
Three-phase ac permanent magnet synchronous generator
|
|
Speed adjustment
|
Automatically adjust the windward Angle
|
|
Control System
|
Electromagnetic / wind round lateralization
|
|
Temperature
|
-40°C-80°C
|
|
Lubrication
|
Lubricating
|
1000W Wind Turbine Generator
