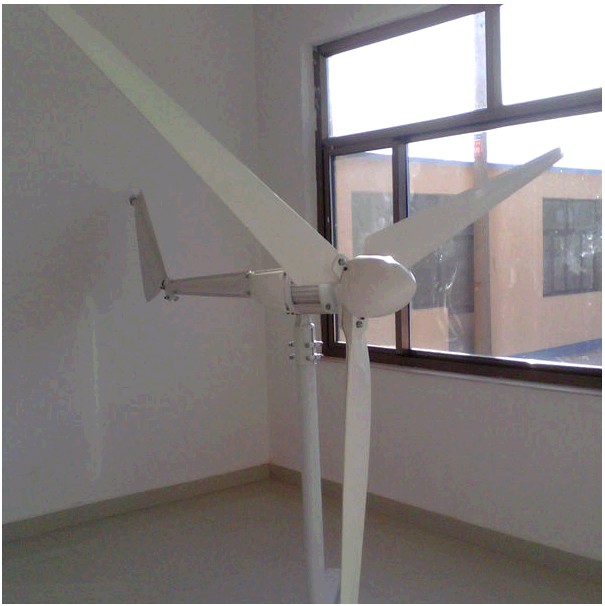

Using new technology for precision injection molding of wind turbine blades,
as well as the aerodynamic design and optimization of structural design, high wind energy utilization coefficient, capacity by automatic flameout protection under strong winds.
Material: nylon fiber or carbon fiber (optional).
Carbon fiber blades, high wind resistance ability, long working life.
Rare earth permanent magnet generator
A. Adopt NdFeB which named king of the magnet, high pure copper wire winding, power generation high efficiency and stability.
B. Special design of stator and rotor, small starting resistance moment, and good heat dissipation.
C. Gearless, direct drive, low speed of rare earth permanent magnet generator,
the operation is simple, safe, and convenient to maintenance.
D. Die casting aluminum alloy shell, anticorrosive processing, resistance to acid and alkali, salt corrosion.
Technical parameters
|
Model
|
500M
|
800M
|
1KL
|
|
Rated power ( W )
|
500
|
800
|
1000
|
|
Rated voltage ( DCV )
|
24
|
24
|
48
|
|
Rated voltage ( DCA )
|
21
|
21
|
21
|
|
wind wheel diameter ( m )
|
2.7
|
2.85
|
3
|
|
Blade material
|
GFRP strengthening
|
GFRP strengthening
|
GFRP strengthening
|
|
Yaw direction
|
Clockwise
|
Clockwise
|
Clockwise
|
|
Started wind ( m/s )
|
2
|
2
|
2
|
|
Rated wind ( m/s )
|
8
|
8
|
9
|
|
Safety wind ( m/s )
|
35
|
35
|
35
|
|
Upwind method
|
Upwind
|
Upwind
|
Upwind
|
|
Rated rotating speed ( RPM )
|
400
|
400
|
400
|
|
Blade number
|
3
|
3
|
3
|
|
Tower height ( m )
|
6
|
6
|
6
|
|
Cable length ( m )
|
20
|
20
|
20
|
|
Suggested battery capacity
|
12V 200AH 2pcs
|
12V 200AH 4pcs
|
12V 200AH 4pcs
|
|
Efficiency
|
0.85
|
0.85
|
0.85
|

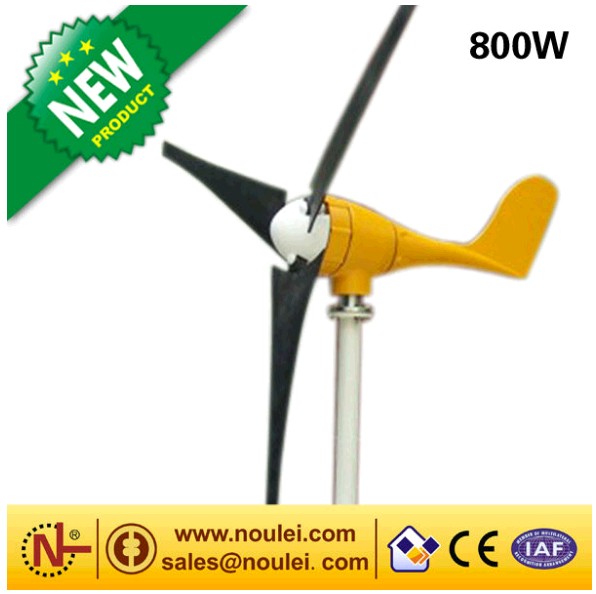

800W Wind Turbine
