• Zn28-12 Series Indoor Fixed High-Voltage Vacuum Circuit Breaker

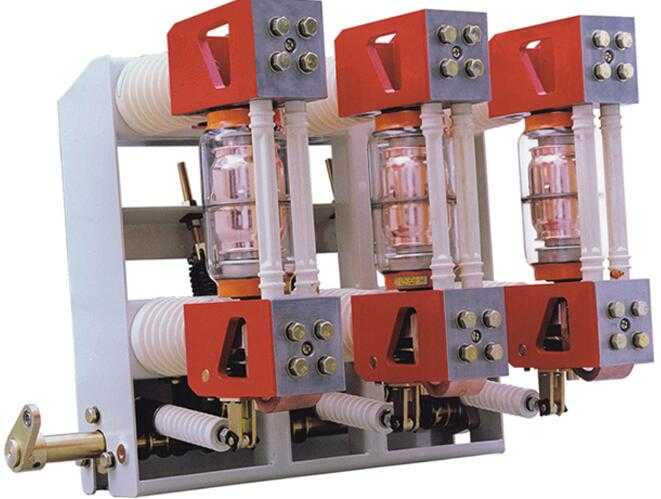

Zn28-12 Series Indoor Fixed High-Voltage Vacuum Circuit Breaker

ZN28(A)-12 series indoor high-voltage vacuum circuit breaker is a kind of three-phase indoor high-voltage switchgear of rated voltage 12kV and AC 50Hz,

Product Details

Quick Details

Description

  • Model NO.: ZN28-12
  • Operation: Manual Type
  • Arc-extinguishing Medium: Vacuum
  • Structure: Moulded Case Circuit Breaker
  • Certification: ISO9001-2000
  • Function: Circuit-Breaker Failure Protection
  • Specification: 12KV
  • HS Code: 8535210000
  • Breaking Capacity: High Voltage Circuit Breakers
  • Speed: High-Speed Circuit Breaker
  • Installation: Fixed
  • Poles Number: 1
  • Type: Circuit Breaker
  • Trademark: ZHON
  • Origin: Zhejiang

ZN28(A)-12 series indoor high-voltage vacuum circuit breaker is a kind of three-phase indoor high-voltage switchgear of rated voltage 12kV and AC 50Hz,

Item

Unit

Parameter

Rated Voltage

kV

12

Rated Current

A

630-1000

630-1000

1250-1600

1600-2000

1250

1250

2000-2500

3150

Rated Short-circuit Breaking Current

kA

20

25

31.5

40

Rated Short-circuit Making Current (Peak)

kA

50

63

80

100

Rated Peak Withstand Current

kA

50

63

80

100

Rated Short-time Withstand Current

kA

20

25

31.5

40

Rated Insulation Level

Power Frequency Withstand Voltage
(Rated Breaking Before and After)

kV

42 (Break 48)

Lightning Impulse Withstand Voltage
  (Rated Breaking Before and After)

kV

75 (Break 84)

Rated Operating Sequence



O-0.3s-C O-180s-CO

Mechanical Life

times

10000

Rated Short-circuit Current Breaking Times

times

50

Rated Closing Voltage of Operator (DC)

V

110, 220

220

Rated Closing Current of Operator (DC)

A

71

128

Rated Opening Voltage of Operator (DC)

V

110, 220

Rated Opening Current of Operator (DC)

A

3.0, 1.5

Clearance Between Open Contacts

mm

11± 1

Over travel of Contacts

mm

4± 1

Three-phase Opening/Closing Synchronization

ms

≤ 2

Closing Bouncing Time

ms

≤ 2

Average Opening Speed (excluding Oil Bumper)

m/s

1.2± 0.3

Average Closing Speed

m/s

0.6± 0.2

Opening Time

Highest Operating Voltage

s

≤ 0.06

Lowest Operating Voltage

s

≤ 0.08

Closing Time

s

≤ 0.2

Main Loop Resistance of Each Phase

μ Ω

≤ 40

≤ 20

Total Thickness of Permissible Wear of Moving and Static Contacts

mm

3

Oil Bumper Buffer Trip

mm

10
