Quick Details
Description
- Model NO.: ZW8-12, ZW8-12G
- Operation: Manual Type
- Arc-extinguishing Medium: Vacuum
- Structure: Moulded Case Circuit Breaker
- Type: Circuit Breaker
- Trademark: ZHON
- Origin: China
- Breaking Capacity: High Voltage Circuit Breakers
- Speed: High-Speed Circuit Breaker
- Installation: Fixed
- Certification: ISO9001-2000
- Function: Circuit-Breaker Failure Protection
- Specification: 12KV
- HS Code: 8535210000

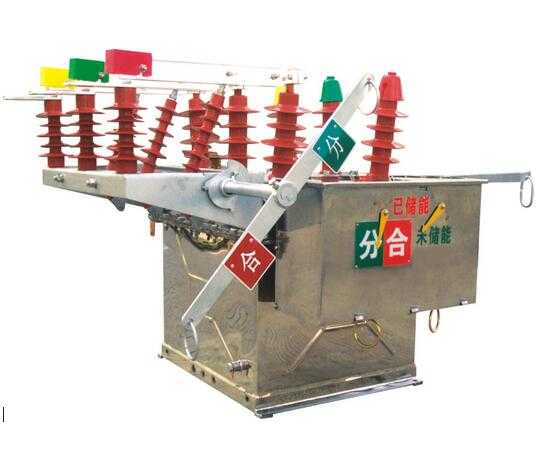

ZW8-12 series outdoor high-voltage vacuum circuit breaker is a kind of three-phase outdoor high-voltage switchgear of rated voltage 12kV and AC 50Hz.
Its population structure is three-phase together box type. Three-phase vacuum arc-extinguish chamber palaces in a metal cabinet, using the SMC insulating material to insulate inter-phase and phase to earth, which is reliable in performance and high in insulating intensity.
ZW8-12G is combined with ZW8-12 circuit breaker and isolating sword, called combination circuit breaker and used as a section switch.
|
Item
|
Unit
|
Parameter
|
|
Rated Voltage
|
kV
|
12
|
|
Rated Current
|
A
|
630
|
|
Rated Short-circuit Breaking Current
|
kA
|
6.3
|
12.5
|
20
|
|
Rated Short-circuit Making Current (Peak)
|
kA
|
16
|
31.5
|
50
|
|
Rated Peak Withstand Current
|
kA
|
16
|
31.5
|
50
|
|
Rated Short-time Withstand Current
|
kA
|
6.3
|
12.5
|
20
|
|
Rated Insulation Level
|
1min Power Frequency
Withstand Voltage (Dry Test)
|
kV
|
42
|
|
Lightning Impulse Withstand Voltage (Peak)
|
kV
|
75
|
|
Rated Operating Sequence
|
|
O-0.3s-C O-180s-CO
|
|
Mechanical Life
|
times
|
10000
|
|
Rated Short-circuit Current Breaking Times
|
times
|
30
|
|
Rated Closing Voltage of Operator
|
V
|
110, 220
|
|
Rated Opening Voltage of Operator
|
V
|
110, 220
|
|
Clearance Between Open Contacts
|
mm
|
11± 1
|
|
Over travel of Contacts
|
mm
|
3
|
|
Three-phase Opening/Closing Synchronization
|
ms
|
≤ 2
|
|
Closing Bouncing Time
|
ms
|
≤ 2
|
|
Average Opening Speed
|
m/s
|
1.0± 0.2
|
|
Average Closing Speed
|
m/s
|
0.7± 0.15
|
|
Opening Time
|
Highest Operating Voltage
|
s
|
0.015~0.05
|
|
Lowest Operating Voltage
|
s
|
0.03~0.06
|
|
Closing Time
|
s
|
0.025~0.05
|
|
Main Loop Resistance of Each Phase
|
μ Ω
|
≤ 120
|
|
Total Thickness of Permissible Wear of Moving and Static Contacts
|
mm
|
3
|
